BodyFront door rubbing strip · page 1 of 2

Do not carry out further dismantling if component is removed for access only.

Do not carry out further dismantling if component is removed for access only.

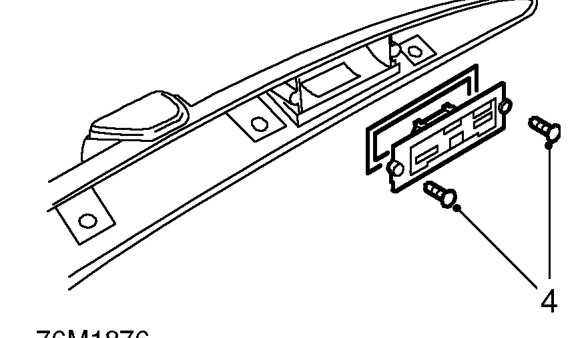

  1. Remove 4 screws securing number plate lights.
  2. Remove tailgate lights and fit to new applique.
  3. Fit and tighten screws securing lights to applique.
  4. Fit self adhesive badge to applique.

Refit

  1. Position applique to tailgate and connect number plate light Lucars.
  2. Fit applique to tailgate and secure with clips.
  3. Fit and tighten screws securing applique to tailgate to 2 Nm.

FRONT DOOR RUBBING STRIP

Service repair no - 76.43.66

Remove

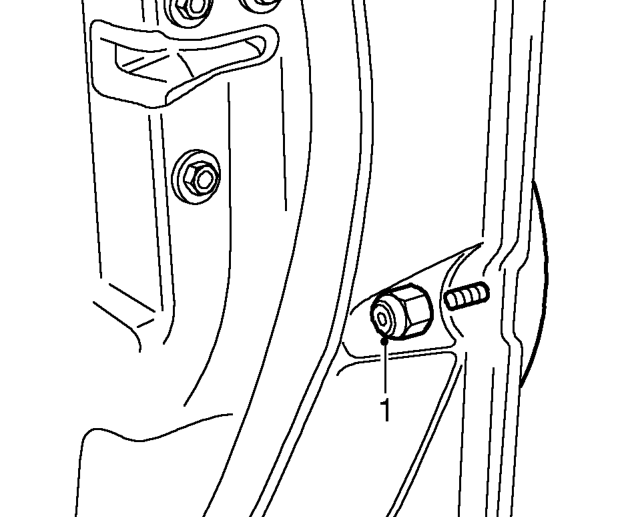

Front door rubbing strip – Service repair no - 76.43.66
  1. Remove nut securing rear edge of rubbing strip to door.
  2. Remove plastic sheet from door. See Interior trim components.
