1. Position air intake moulding to bumper.

CAUTION: Do not remove backing strip from adhesive tape at this stage.

2. Make suitable alignment marks between bumper and air intake moulding.
3. Remove backing strip from adhesive tape.
4. Position air intake moulding to bumper, align reference marks and press moulding on to bumper.
5. Fit and tighten 12 screws.

All models

6. Position air intake grille to bumper, fit retaining clips.
7. Position bumper to body.
8. Fit bolt securing centre of bumper to body and tighten to 6 Nm.
9. Fit bolts securing lower edge of bumper to body and tighten to 6 Nm.
10. Move wheel arch liners aside, fit flange nuts securing bumper to both wings and tighten to 10 Nm..
11. Fit screws securing bumper to wheel arch liners.
12. Fit nuts securing bumper to bonnet locking platform and tighten to 3 Nm.
13. Fit front fog lights - if fitted. See ELECTRICAL, Repairs.
14. Clean mating faces of number plate and bumper to ensure both are free from grease and dirt.
15. Attach adhesive pads to rear of number plate.
16. Fit number plate to bumper.

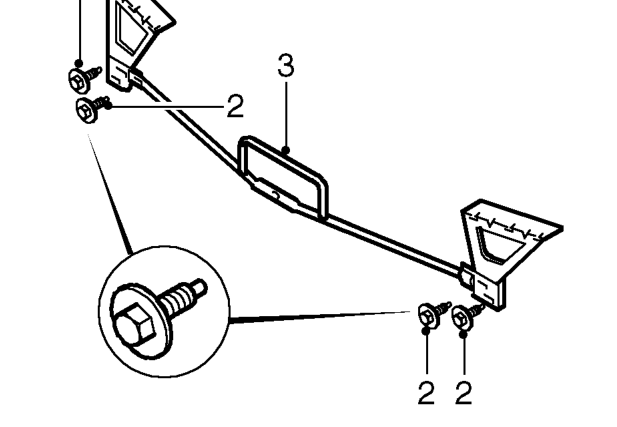

FRONT BUMPER ARMATURE

Service repair no - 76.22.49

Remove

1. Remove front bumper. See this section.

2. Remove 4 bolts securing armature to body.
3. Remove armature.

Refit

1. Position armature to body and fit and tighten bolts to 10 Nm.
2. Fit front bumper. See this section.
