Workshop Manuals Factory service & repair Rover
Rover 200 Workshop Manual (1995-1999)27 · Body
27 · Body & interior

Rear door rubbing strip

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Exterior fittings › Rear door rubbing strip
BodyRear door rubbing strip

REAR DOOR RUBBING STRIP

Service repair no - 76.43.86

Remove

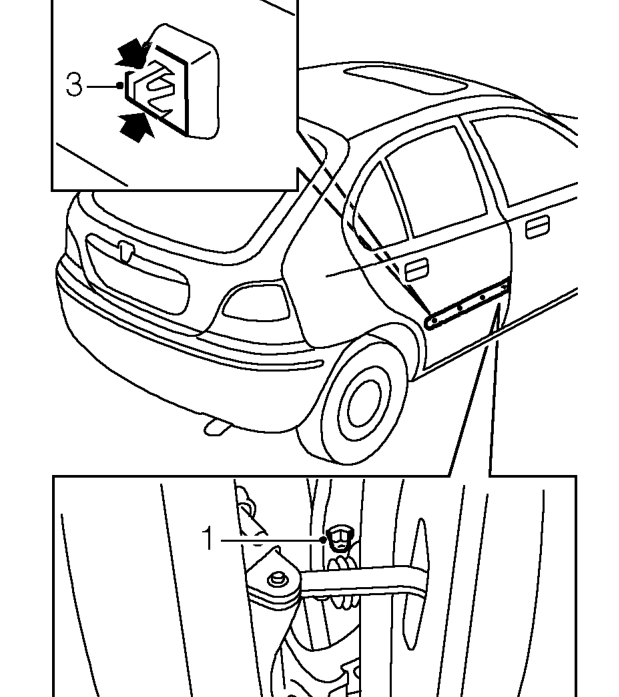

Rear door rubbing strip – Service repair no - 76.43.86
  1. Remove nut securing forward edge of rubbing strip to door.
  2. Remove rear door plastic sheet. See Interior trim components.
  3. Compress tags on 3 clips and release rubbing strip from door. Do not carry out further dismantling if component is removed for access only.

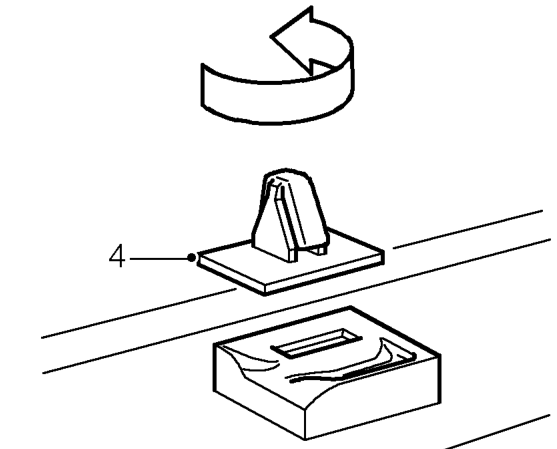

Rear door rubbing strip – Compress tags on 3 clips and release rubbing strip from door. Do not carry out further dis
  1. Remove clips from rubbing strip by rotating and fit to new.

Refit

  1. Fit rubbing strip to door and secure with clips.
  2. Fit and tighten nut securing forward edge of rubbing strip to door.
  3. Fit rear door plastic sheet. See Interior trim components.
