Rover 200 Workshop Manual (1995-1999)27 · Body
27 · Body & interior

Rear tread plate

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Exterior fittings › Rear tread plate
BodyRear tread plate · page 1 of 2

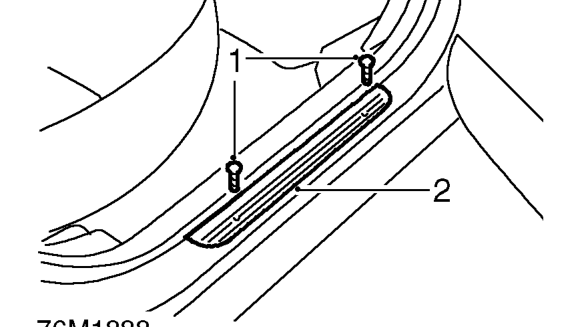

REAR TREAD PLATE

Service repair no - 76.76.02

Remove

Rear tread plate – Service repair no - 76.76.02
  1. Remove 2 screws securing tread plate to sill.
  2. Release tread plate from door seal and remove.

Refit

  1. Fit tread plate to door sill and seal.
  2. Secure tread plate with screws.

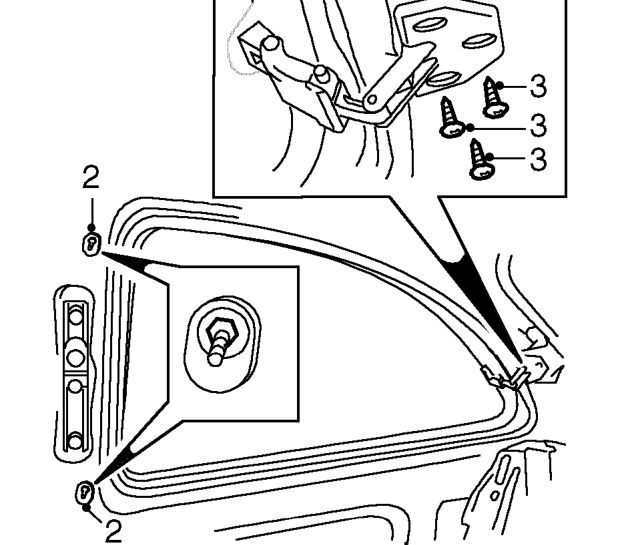

REAR QUARTER GLASS - 3 DOOR

Service repair no - 76.81.24

Remove

  1. Remove rear quarter trim casing. See Interior trim components.
Rear quarter glass - 3 door – Remove rear quarter trim casing. See Interior trim components.
  1. Remove 2 nuts securing window to body.
  2. Remove 3 screws securing window latch to body.
