BodyFront grille

FRONT GRILLE

Service repair no - 76.55.03

Remove

  1. Remove front bumper. See this section.

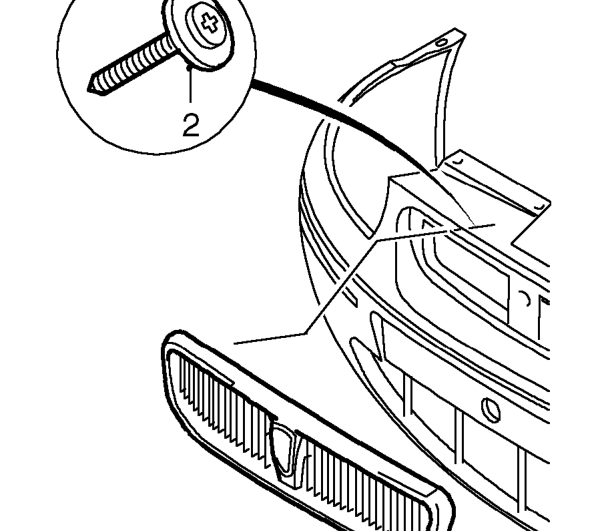

Front grille – Remove front bumper. See this section.
  1. Remove 10 screws and remove grille.

Refit

  1. Fit grille and secure with screws.
  2. Refit front bumper. See this section.

REAR BUMPER

Service repair no - 76.22.15

Remove

  1. Open tailgate.

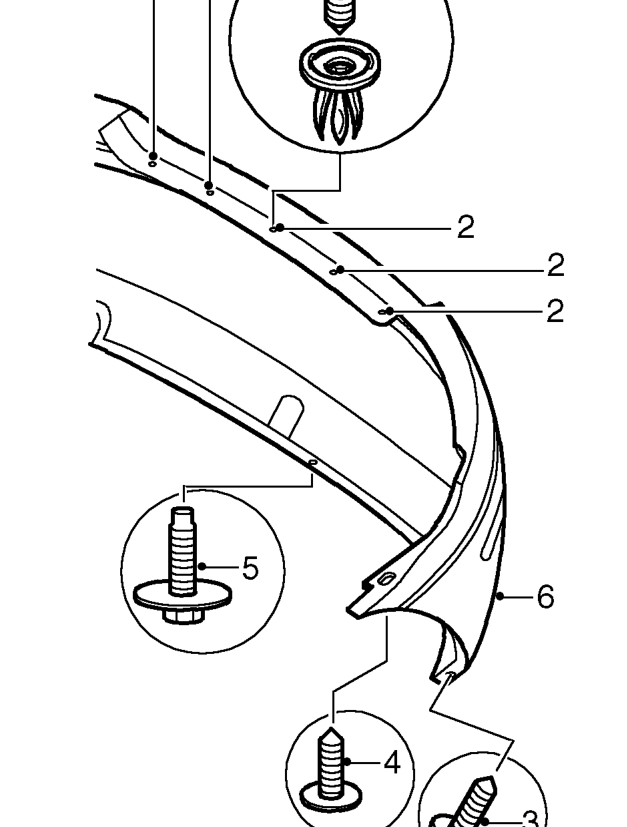

Rear bumper – Open tailgate.
  1. Remove 5 scrivets securing upper edge of bumper to body.
  2. Remove screw either side securing bumper to wheel arch liner.
  3. Remove screw either side securing bumper to rear wing.
  4. Remove bolt securing lower edge of bumper to underbody.
  5. Remove rear bumper.
