Workshop Manuals Factory service & repair Rover
Rover 200 Workshop Manual (1995-1999)27 · Body
27 · Body & interior

Tailgate applique

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Exterior fittings › Tailgate applique
BodyTailgate applique

Do not carry out further dismantling if component is removed for access only.

  1. Remove 2 screws securing centre high mounted stop light to spoiler.
  2. Remove centre high mounted stop light.

Refit

  1. Fit centre high mounted stop light to spoiler and secure with screws.
  2. Position spoiler to tailgate and connect centre high mounted stop light multiplug.
  3. Fit bolts securing spoiler to tailgate and tighten to 6 Nm.
  4. Fit tailgate upper finisher. See Interior trim components.

TAILGATE APPLIQUE

Service repair no - 76.28.76

Remove

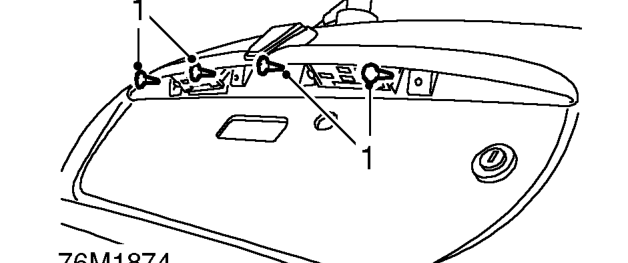

Tailgate applique – Service repair no - 76.28.76
  1. Using special tool 18G 1766 , remove 4 fixings securing applique to tailgate.
Tailgate applique – Using special tool 18G 1766 , remove 4 fixings securing applique to tailgate.

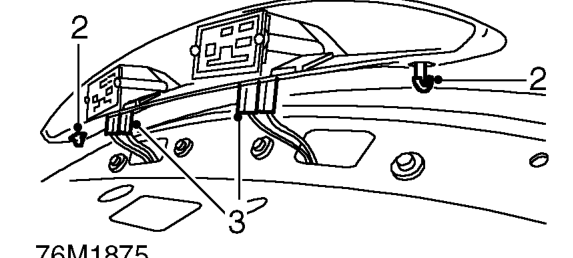

  1. Release 2 clips securing applique to tailgate.
  2. Disconnect 4 Lucars from number plate lights and remove applique.
