Vehicles fitted with heated washer jets:

Refit

1. With assistance position bonnet to hinges and finger tighten bolts.
2. Connect washer tube.

Vehicles fitted with heated washer jets:

3. Connect heated washer jet multiplugs.
4. Position harness to bonnet and secure sound deadening pad with trim studs.

All models:

5. Remove protection covers.
6. Close bonnet to safety catch position and check that bonnet is aligned to both front wings and that gaps are equal.
7. Tighten hinge bolts to 9 Nm.

BONNET LOCK

Service repair no - 76.16.21

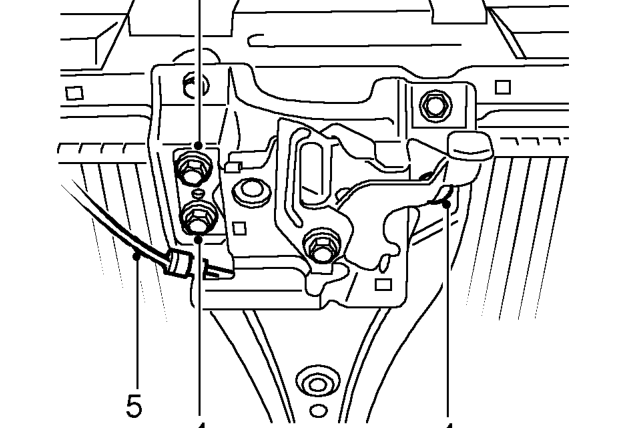

Remove

1. Remove 2 nuts securing bonnet lock cover.
2. Remove cover.

3. Mark position of bonnet lock.
4. Remove 3 bolts securing lock to body.
5. Release cable from lock.

Refit

1. Fit cable to bonnet lock.
2. Align lock to marks made during remove.
3. Fit and tighten bolts to 10 Nm.
4. Close and open bonnet to check lock operation and alignment.
5. Slacken bolts securing lock and adjust lock alignment.
6. Tighten bolts to 10 Nm.
7. Close and open bonnet to check lock operation and alignment.
8. Fit lock cover and tighten nuts to 3 Nm.
