REAR QUARTER RUBBING STRIP

Service repair no - 76.43.87

Remove

  1. Remove rear quarter lower trim casing. See Interior trim components.
Rear quarter rubbing strip – Remove rear quarter lower trim casing. See Interior trim components.

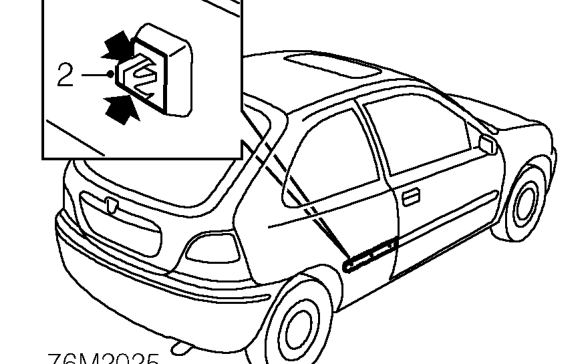

  1. Compress tags on 3 clips and release rubbing strip from rear quarter panel. Do not carry out further dismantling if component is removed for access only.
Rear quarter rubbing strip – Compress tags on 3 clips and release rubbing strip from rear quarter panel. Do not carry o

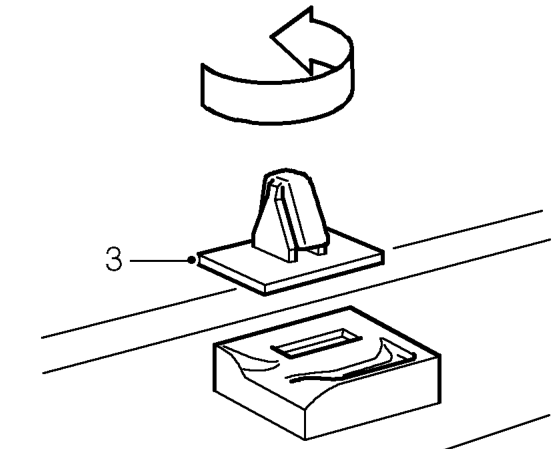

  1. Remove clips from rubbing strip by rotating and fit to new.

Refit

  1. Fit rubbing strip to rear quarter panel and secure with clips.
  2. Fit rear quarter lower trim casing. See Interior trim components.

FRONT TREAD PLATE

Service repair no - 76.76.01

Remove

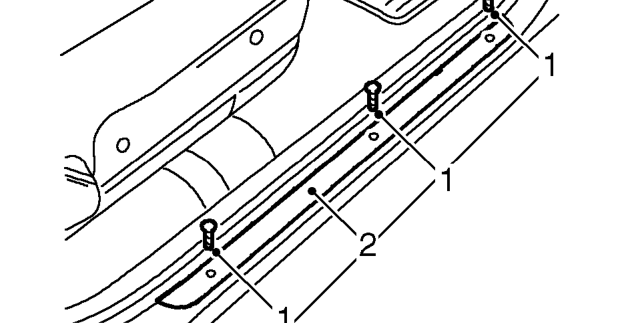

Front tread plate – Service repair no - 76.76.01
  1. Remove 3 screws securing tread plate to sill.
  2. Release tread plate from door seal and remove.

Refit

  1. Fit tread plate to door sill and seal.
  2. Secure tread plate with screws.
