Rear tread plate (page 2 of 2)

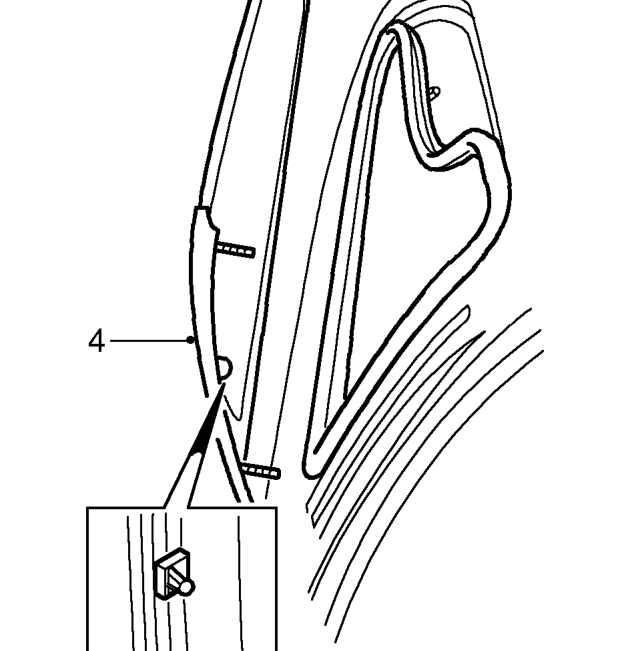

4. Release window from clip on ’B’ post and remove. Do not carry out further dismantling if component is removed for access only.
5. Remove screw securing latch to window.
6. Remove latch and fit to new glass.
7. Fit and tighten screw securing latch to glass.

Refit

1. Position window to body and secure to clip on ’B’ post.
2. Fit nuts securing window to body and tighten to 9 Nm.
3. Fit screws securing window latch to body and tighten to 4 Nm.
4. Fit rear quarter trim casing. See Interior trim components.
