Rover 200 Workshop Manual (1995-1999)27 · Body
27 · Body & interior

Front door rubbing strip (page 2 of 2)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Exterior fittings
BodyFront door rubbing strip · page 2 of 2

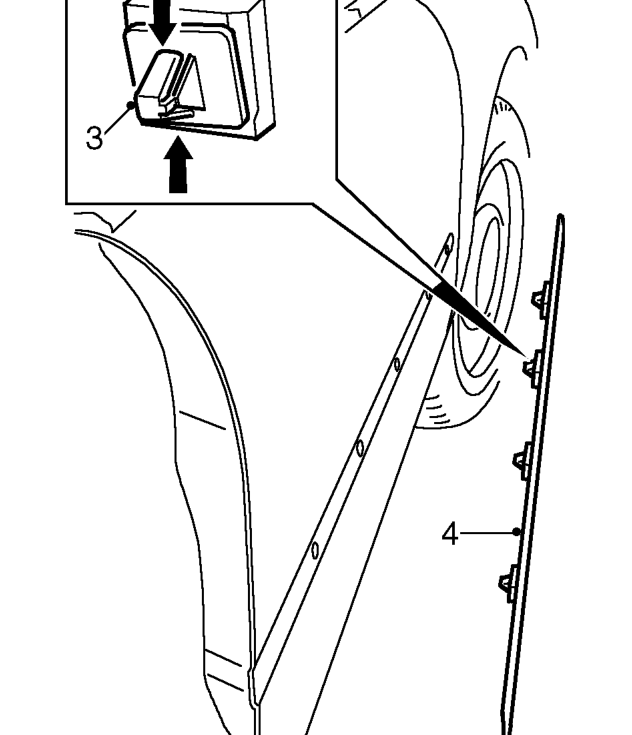

Diagram
  1. Compress tags on clips and release rubbing strip from door.
  2. Remove rubbing strip from door.

Do not carry out further dismantling if component is removed for access only.

Do not carry out further dismantling if component is removed for access only.

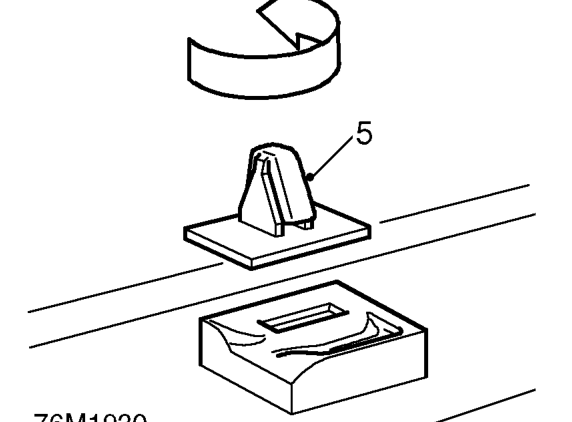

  1. Rotate clips to remove from rubbing strip.
  2. Fit clips to new rubbing strip.

Refit

  1. Fit rubbing strip to door and secure with clips.
  2. Fit and tighten nut securing rubbing strip to door to 0.5 Nm.
  3. Fit plastic sheet to door. See Interior trim components.
