Rover 200 Workshop Manual (1995-1999)27 · Body
27 · Body & interior

Rear door plastic sheet

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Doors › Rear door plastic sheet
BodyRear door plastic sheet

Refit

  1. Fit plastic sheet to door and fit locating dowels.
  2. Position speaker to door and connect multiplug.
  3. Fit screws securing speaker to door.
  4. Position window lift ECU to door and connect multiplugs.
  5. Fit screws securing ECU to door.
  6. Fit front door trim casing. See Interior trim components.

REAR DOOR PLASTIC SHEET

Service repair no - 76.34.28

Remove

  1. Remove rear door trim casing. See Interior trim components.

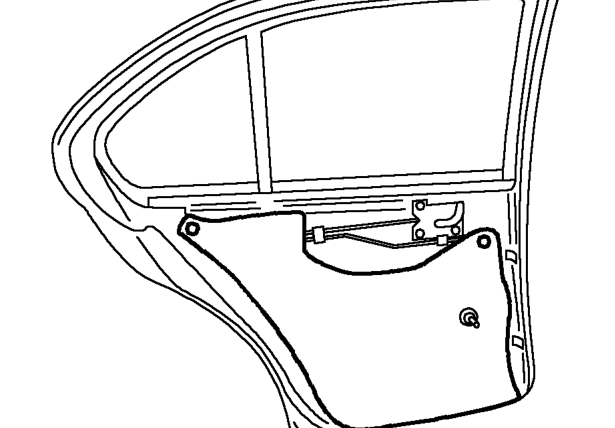

Rear door plastic sheet – Remove rear door trim casing. See Interior trim components.
  1. Remove 2 locating dowels from plastic sheet.
  2. Release and remove plastic sheet from door.

Refit

  1. Fit plastic sheet to door and fit locating dowels.
  2. Fit rear door trim casing. See Interior trim components.
