Workshop Manuals Factory service & repair Rover
Rover 200 Workshop Manual (1995-1999)27 · Body
27 · Body & interior

Rear door outside handle

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Doors › Rear door outside handle
BodyRear door outside handle

REAR DOOR OUTSIDE HANDLE

Service repair no - 76.58.02

Remove

  1. Remove rear door plastic sheet. See Interior trim components.
Rear door outside handle – Remove rear door plastic sheet. See Interior trim components.

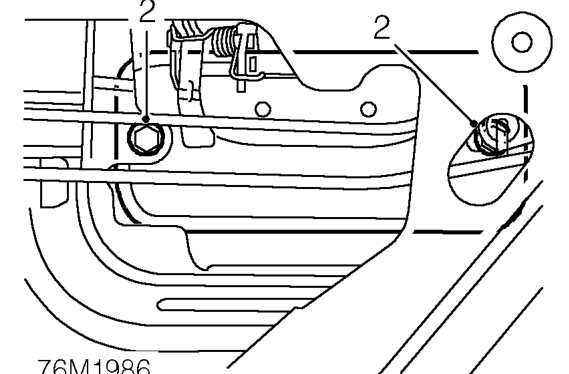

  1. Remove 2 bolts securing outside handle to door.
Rear door outside handle – Remove 2 bolts securing outside handle to door.

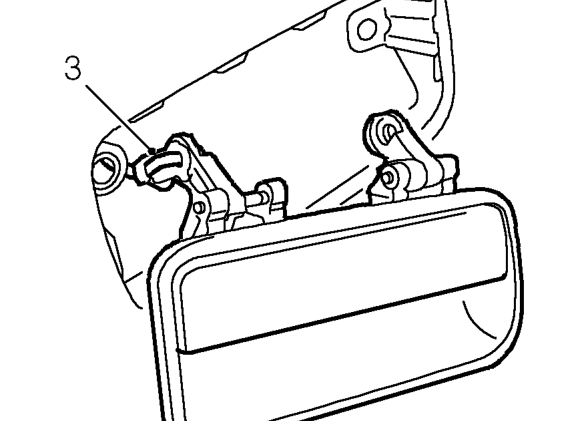

  1. Release handle from door and disconnect control rod.
  2. Remove outside door handle.

Refit

  1. Position handle to door and connect control rod.
  2. Fit handle to door and tighten screws to 9 Nm.
  3. Fit rear door plastic sheet. See Interior trim components.
