Rover 200 Workshop Manual (1995-1999)27 · Body
27 · Body & interior

Rear door central locking components

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Doors › Rear door central locking components
BodyRear door central locking components

REAR DOOR CENTRAL LOCKING COMPONENTS

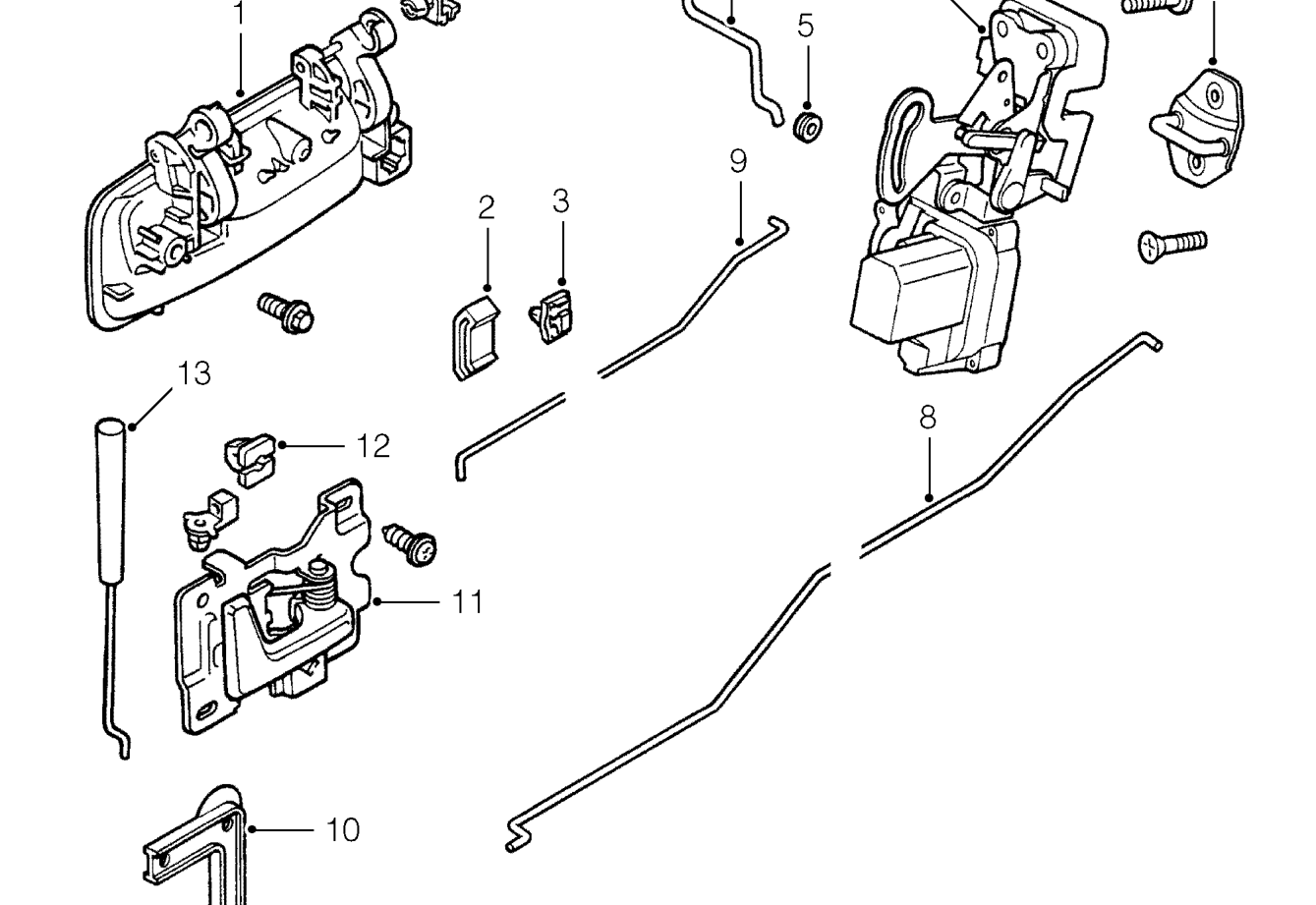

Rear door central locking components
  1. Outer door handle assembly
  2. Cushion - lock rod
  3. Holder - lock rod
  4. Link rod - handle
  5. Bush - joint
  6. Latch assembly
  7. Striker - door lock
  8. Link rod - latch assembly to pivot
  9. Rod - inside handle
  10. Pivot - sill button link to link rod
  11. Inside door handle assembly
  12. Fixing - inside door handle assembly
  13. Sill button link
