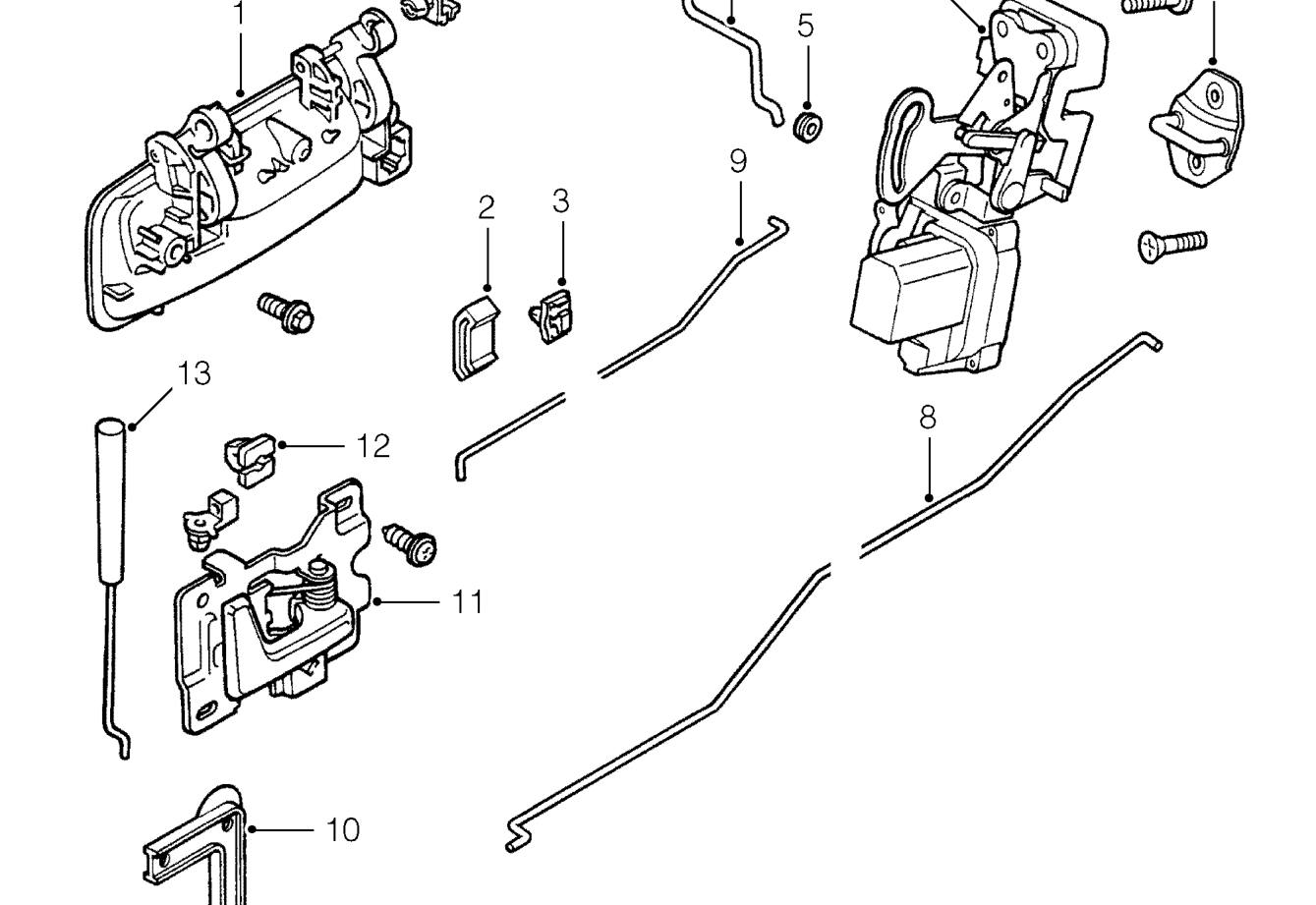

REAR DOOR CENTRAL LOCKING COMPONENTS

1. Outer door handle assembly
2. Cushion - lock rod
3. Holder - lock rod
4. Link rod - handle
5. Bush - joint
6. Latch assembly
7. Striker - door lock
8. Link rod - latch assembly to pivot
9. Rod - inside handle
10. Pivot - sill button link to link rod
11. Inside door handle assembly
12. Fixing - inside door handle assembly
13. Sill button link
