Rear door glass regulator

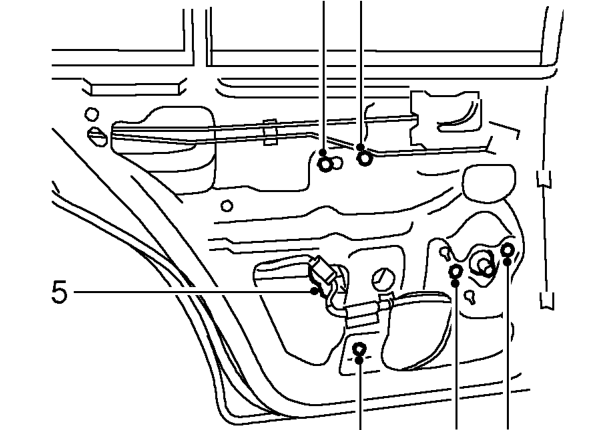

REAR DOOR GLASS REGULATOR

Service repair no - 76.31.46

Remove

1. Remove rear door glass. See Interior trim components.

2. Remove 2 bolts securing regulator to door.
3. Remove 2 bolts securing glass channel to door.
4. Loosen bolt securing channel to door.
5. Remove regulator and channel assembly from door.

Refit

1. Position regulator and channel assembly to door.
2. Fit bolts securing channel to door and tighten to 8 Nm.
3. Tighten bolt securing channel to door to 8 Nm.
4. Fit and tighten bolts securing regulator to door to 8 Nm.
5. Fit rear door glass. See Interior trim components.

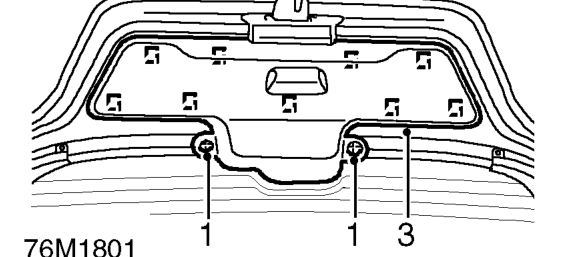

TAILGATE TRIM CASING

Service repair no - 76.34.10

Remove

1. Remove 2 screws securing tailgate trim casing to tailgate.
2. Release 9 clips securing trim casing to tailgate.
3. Remove trim casing from tailgate.

Refit

1. Position trim casing to tailgate and secure with clips.
2. Fit and tighten screws securing tailgate trim casing to tailgate.
