Rear door glass

REAR DOOR GLASS

Service repair no - 76.31.02

Remove

1. Remove rear door plastic sheet. See Interior trim components.

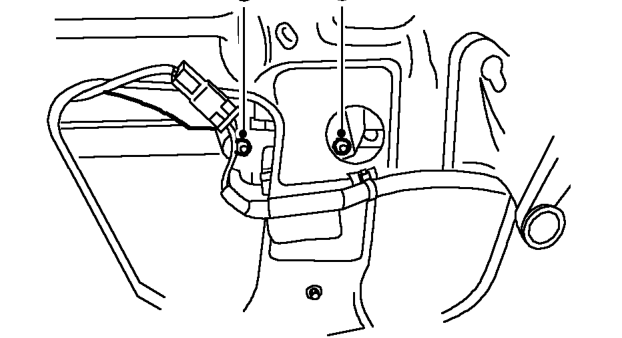

2. Position glass to gain access to fixing bolts.
3. Remove bolts securing glass to regulator.
4. Release glass from regulator and move glass to bottom of door.

5. Release rubber from glass rear channel.

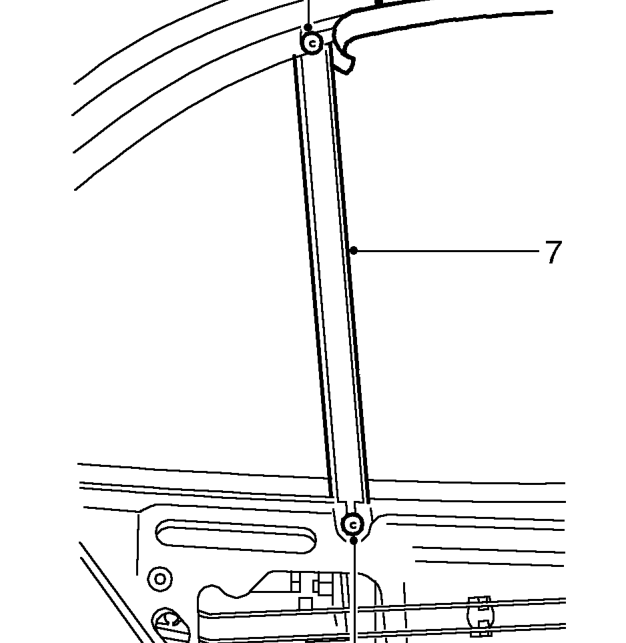

6. Remove 2 nuts securing rear channel to door.
7. Remove channel from door.
8. Raise glass and remove from door.

Refit

1. Position glass to door.
2. Fit glass rear channel to door and tighten nuts to 8 Nm.
3. Fit rubber to channel.
4. Position glass to regulator and fit and tighten bolts to 9 Nm.
5. Fit rear door plastic sheet. See Interior trim components.
