Rover 200 Body Repair Manual (1995-1999)05 · Body
05 · Body & interior

Rear quarter glass - 5 door

Make
Rover
Model
200 Body Repair Manual
Year
1995–1999
Section
Doors › Rear quarter glass - 5 door
BodyRear quarter glass - 5 door

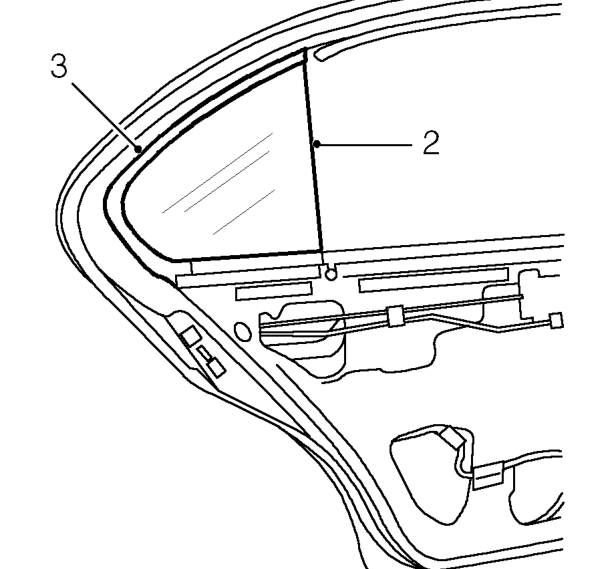

REAR QUARTER GLASS - 5 DOOR

Service repair no - 76.31.31

Remove

  1. Remove rear door glass. See Interior trim components.
Rear quarter glass - 5 door – Remove rear door glass. See Interior trim components.
  1. Remove rear quarter glass, complete with seal, from door.
  2. Remove seal from glass.

Refit

  1. Fit rubber seal to glass.
  2. Apply soap solution to rubber to aid refitment.
  3. Fit glass and rubber to door.
  4. Fit rear door glass. See Interior trim components.

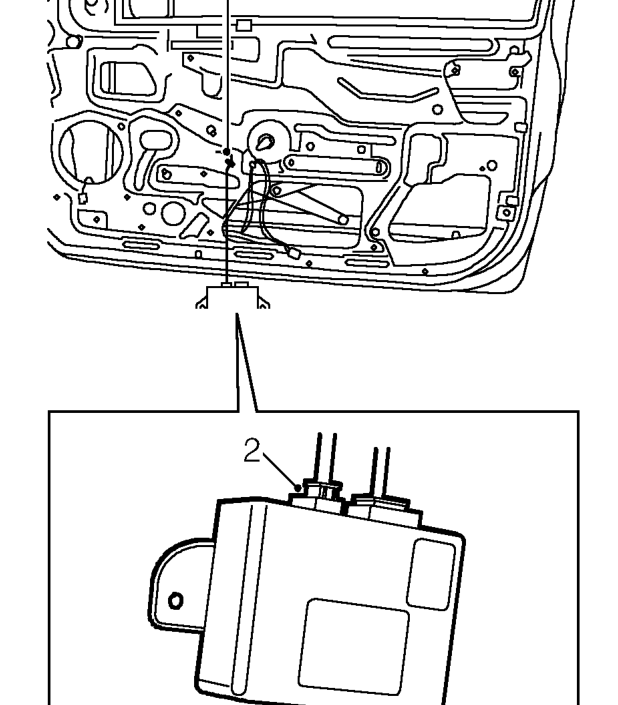

FRONT DOOR GLASS REGULATOR

Service repair no - 76.31.45

Remove

  1. Remove front door glass. See Interior trim components.
Front door glass regulator – Remove front door glass. See Interior trim components.

Models with power windows

  1. Disconnect multiplug from front door glass motor and release harness clip from door.
