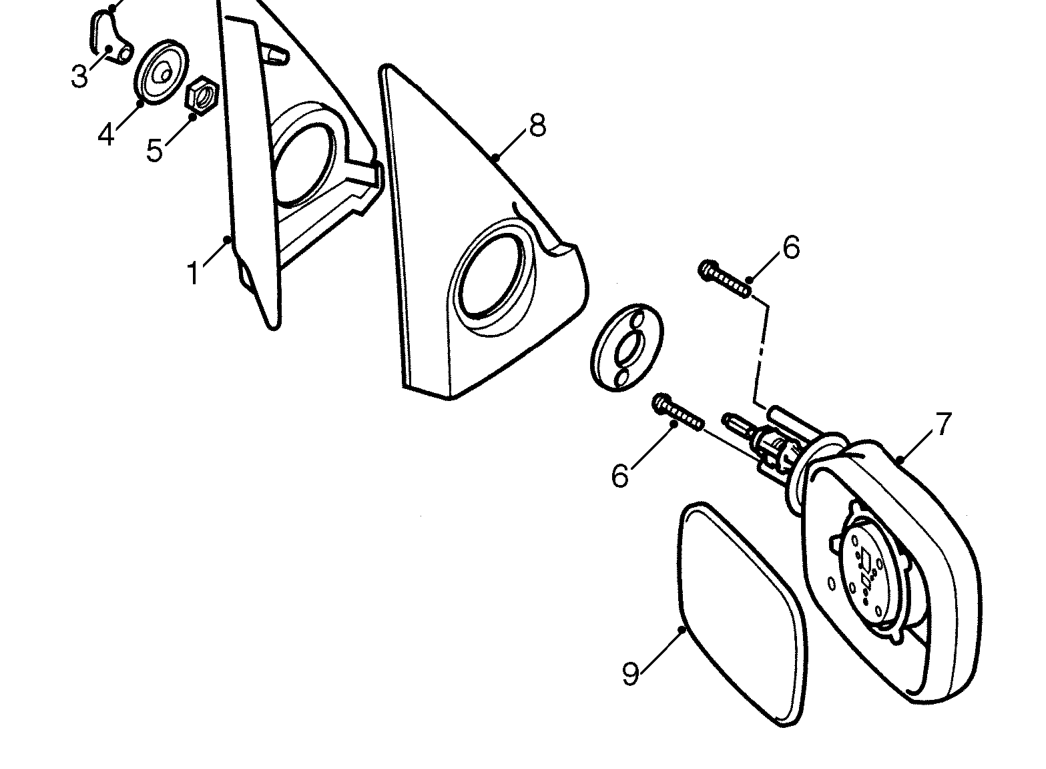

Exterior mirror - manual

EXTERIOR MIRROR - MANUAL

Service repair no - 76.10.52

Remove

1. Remove interior trim from cheater panel.
2. Remove escutcheon from remote lever handle.
3. Release clips and remove remote lever handle.
4. Remove grommet from lever.
5. Remove nut securing lever to cheater panel.
6. Remove 2 screws securing exterior mirror to cheater.
7. Remove exterior mirror. Do not carry out further dismantling if component is removed for access only.
8. Remove cheater panel exterior trim from mirror.
9. Release clips and remove mirror glass.
10. Fit mirror glass and secure to clips.
11. Fit cheater panel exterior trim to mirror.

Refit

1. Fit exterior mirror to cheater and secure with screws.
2. Fit and tighten nut securing remote lever to cheater.
3. Fit grommet to lever.
4. Fit handle to remove lever.
5. Fit escutcheon to remote lever handle.
6. Fit interior trim to cheater panel.
