Exterior mirror - electric

EXTERIOR MIRROR - ELECTRIC

Service repair no - 76.10.57

Remove

1. Remove front door trim casing. See Interior trim components.

2. Disconnect multiplug from exterior mirror.

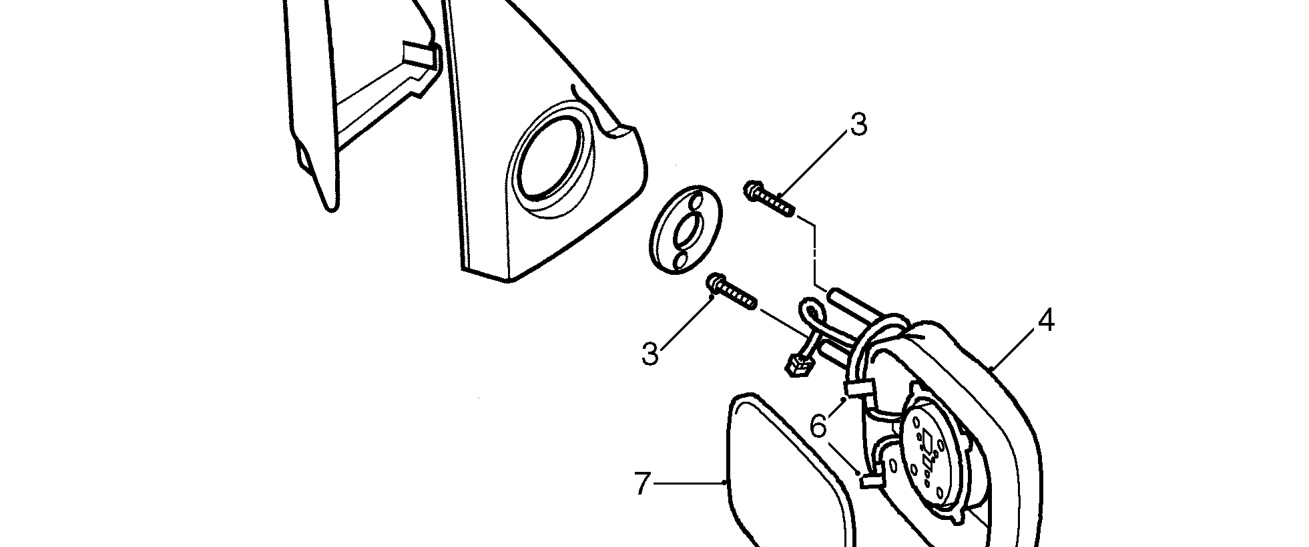

3. Remove 2 screws securing exterior mirror to cheater panel.
4. Remove exterior mirror. Do not carry out further dismantling if component is removed for access only.
5. Remove cheater panel exterior trim from mirror.
6. Release mirror glass from clips and disconnect 2 Lucar connectors.
7. Remove mirror glass.
8. Position glass to mirror and connect Lucars.
9. Fit glass to mirror and secure clips.
10. Fit cheater panel exterior trim to mirror.

Refit

1. Fit mirror to cheater panel and secure with screws.
2. Connect multiplug to exterior mirror.
3. Fit front door trim casing. See Interior trim components.
