Workshop Manuals Factory service & repair Rover
Rover 200 Body Repair Manual (1995-1999)05 · Body
05 · Body & interior

Front door interior handle

Make
Rover
Model
200 Body Repair Manual
Year
1995–1999
Section
Doors › Front door interior handle
BodyFront door interior handle

FRONT DOOR INTERIOR HANDLE

Service repair no - 76.58.20

Remove

  1. Remove front door trim casing. See Interior trim components.
Front door interior handle – Remove front door trim casing. See Interior trim components.
  1. Remove 3 screws securing handle to door.
  2. Release control rod and remove handle from door.

Refit

  1. Connect control cable to handle and position handle to door.
  2. Fit and tighten screws securing handle to door.
  3. Fit front door trim casing. See Interior trim components.

REAR DOOR INTERIOR HANDLE

Service repair no - 76.58.19

Remove

  1. Remove rear door trim casing. See Interior trim components.

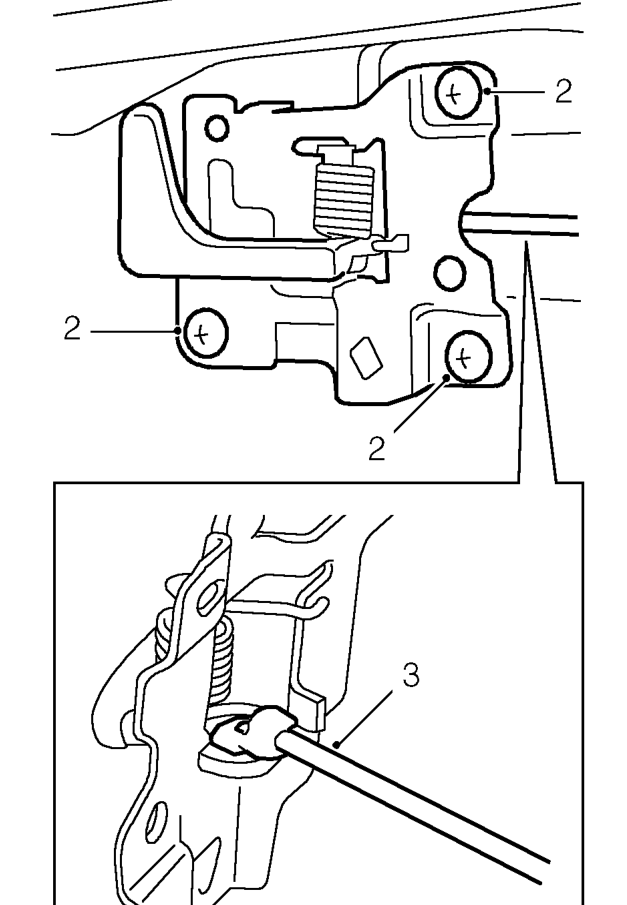

Rear door interior handle – Remove rear door trim casing. See Interior trim components.
  1. Remove 3 screws securing handle to door.
  2. Release control rod and remove handle from door.

Refit

  1. Connect control cable to handle and position handle to door.
  2. Fit and tighten screws securing handle to door.
  3. Fit rear door trim casing. See Interior trim components.
