Rover 200 Body Repair Manual (1995-1999)05 · Body
05 · Body & interior

Front door plastic sheet

Make
Rover
Model
200 Body Repair Manual
Year
1995–1999
Section
Doors › Front door plastic sheet
BodyFront door plastic sheet

FRONT DOOR PLASTIC SHEET

Service repair no - 76.34.26

Remove

  1. Remove front door trim casing. See Interior trim components.
Front door plastic sheet – Remove front door trim casing. See Interior trim components.

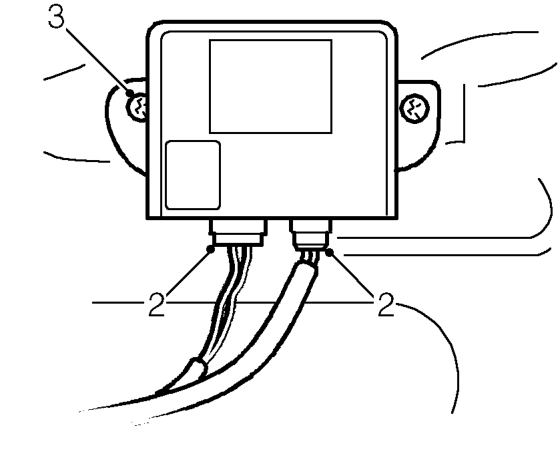

  1. Disconnect 2 multiplugs from window lift ECU.
  2. Remove 2 screws and remove window lift ECU.
Front door plastic sheet – Remove 2 screws and remove window lift ECU.

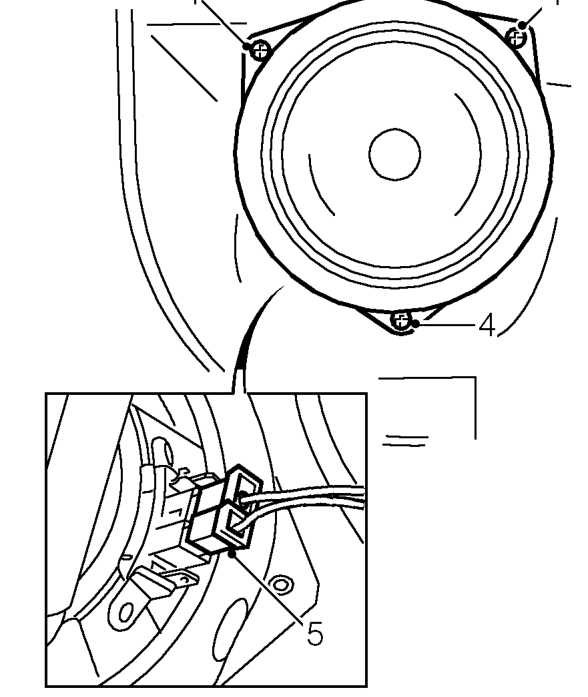

  1. Remove 3 screws securing speaker to door.
  2. Disconnect multiplug and remove speaker.
Front door plastic sheet – Disconnect multiplug and remove speaker.

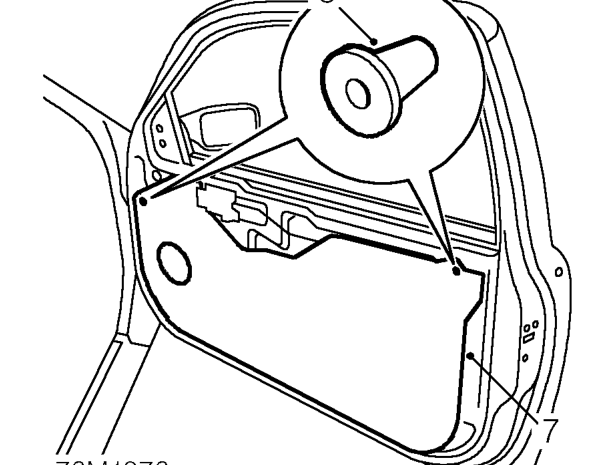

  1. Remove locating dowels from plastic sheet.
  2. Release and remove plastic sheet from door.
