Models with power windows

NOTE: Mark position of roller guide bolts on door before removal.

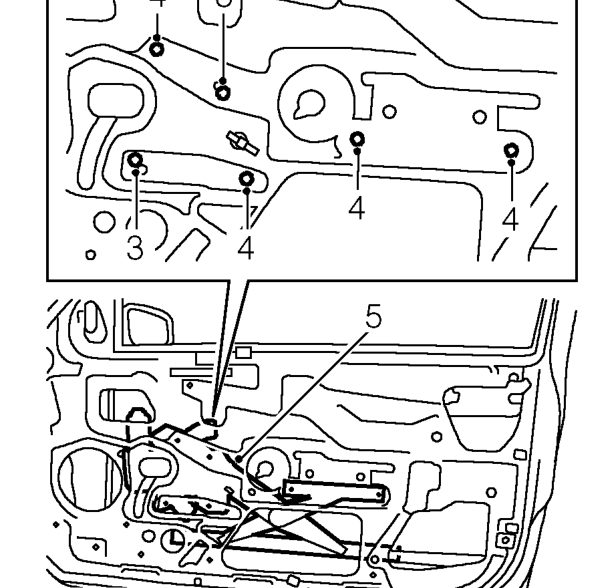

3. Loosen 2 bolts securing regulator to door.
4. Remove 4 bolts securing regulator to door.
5. Release and remove regulator assembly from door.

NOTE: Before removing power window motor mark the location by scribing a line across the sector gear and regulator.

Models with power windows

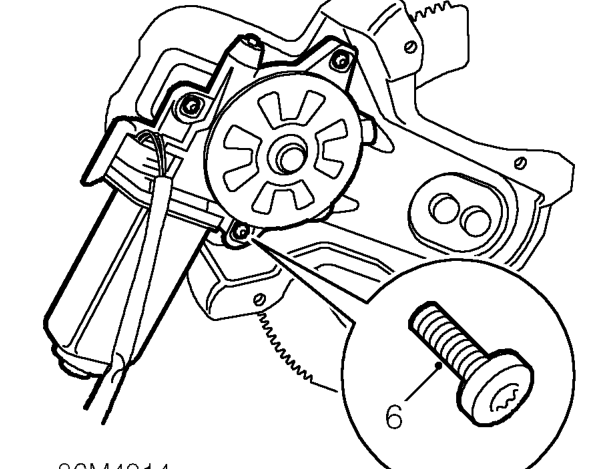

6. Using a Torx bit remove 3 screws securing motor to regulator, then remove the motor.

Refit

Models with power windows

1. Apply grease to motor gear and regulator pivot points.
2. Ensure regulator marks are aligned, position motor to regulator and tighten screws to 7 Nm.

All models

3. Position and align regulator assembly to door.
4. Fit bolts to secure regulator, tighten to 8 Nm.
5. Align roller guide, fit bolts to align with original marks and tighten to 8 Nm.
6. Models with power windows: Connect multiplug to motor and secure clip to door.
7. Refit front door glass. See Interior trim components.
