Drivers door lock

DRIVERS DOOR LOCK

Service repair no - 76.37.39

Remove

1. Remove front door trim casing. See Interior trim components.

2. Remove bolt securing lock to outside door handle.
3. Release control rod from lock.
4. Remove lock from door.

Refit

1. Position lock in door and fit control rod.
2. Fit lock to handle and tighten bolt to 9 Nm.
3. Fit front door trim casing. See Interior trim components.

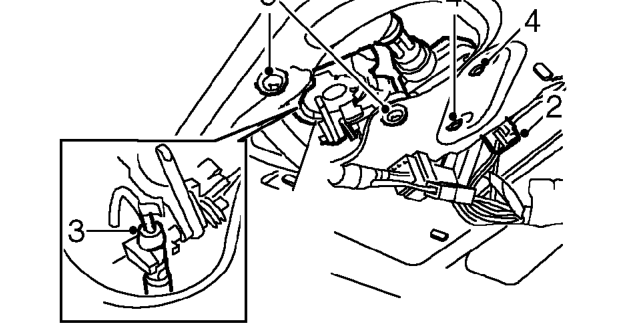

TAILGATE LOCK

Service repair no - 76.37.41

Remove

1. Remove tailgate trim casing. See Interior trim components.

2. Disconnect multiplug from motor.
3. Release tailgate release cable from lock.
4. Loosen 2 screws securing lock motor to tailgate.
5. Remove 2 screws securing lock to tailgate.
6. Remove lock and motor from tailgate.
7. Release lock from motor.

Refit

1. Fit lock to motor and position to tailgate.
2. Fit and tighten screws securing lock to tailgate.
3. Tighten screws securing motor to tailgate to 9 Nm.
4. Connect release cable to lock.
5. Connect multiplug to motor.
6. Fit tailgate trim casing. See Interior trim components.
