Rear door trim casing

REAR DOOR TRIM CASING

Service repair no - 76.34.04

Remove

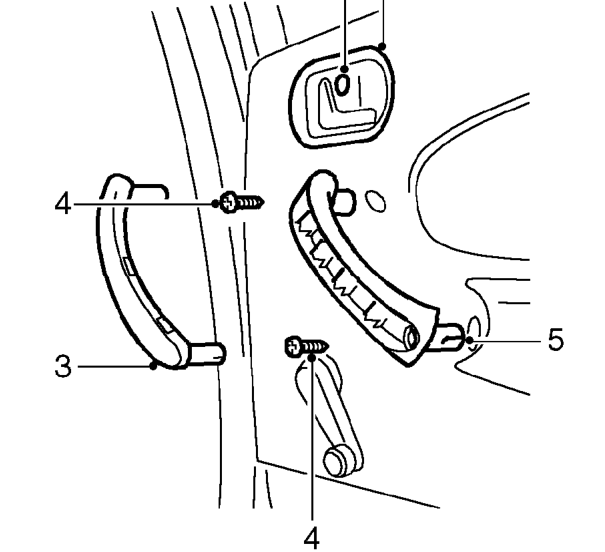

1. Remove screw securing door handle escutcheon to door.
2. Remove escutcheon from door handle.
3. Remove escutcheon from door pull.
4. Remove 2 screws securing door pull to door.
5. Remove door pull.

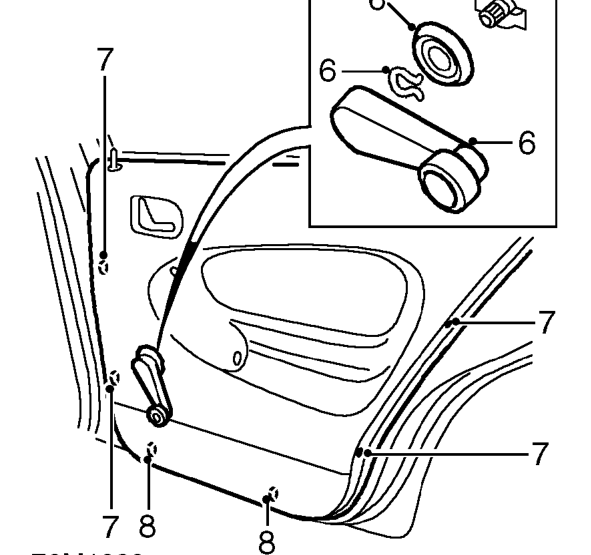

6. Release spring clip securing regulator handle and collect handle and finisher.
7. Remove 4 screws securing trim casing to door.
8. Release trim casing from 2 clips and guide over sill button.

Refit

1. Guide trim casing over sill button and secure to clips on door.
2. Fit and tighten screws securing trim casing to door.
3. Fit regulator handle and finisher to door and secure with spring clip.
4. Fit door pull to door and secure with screws.
5. Fit escutcheon to door pull.
6. Fit handle escutcheon to door and secure with screw.
