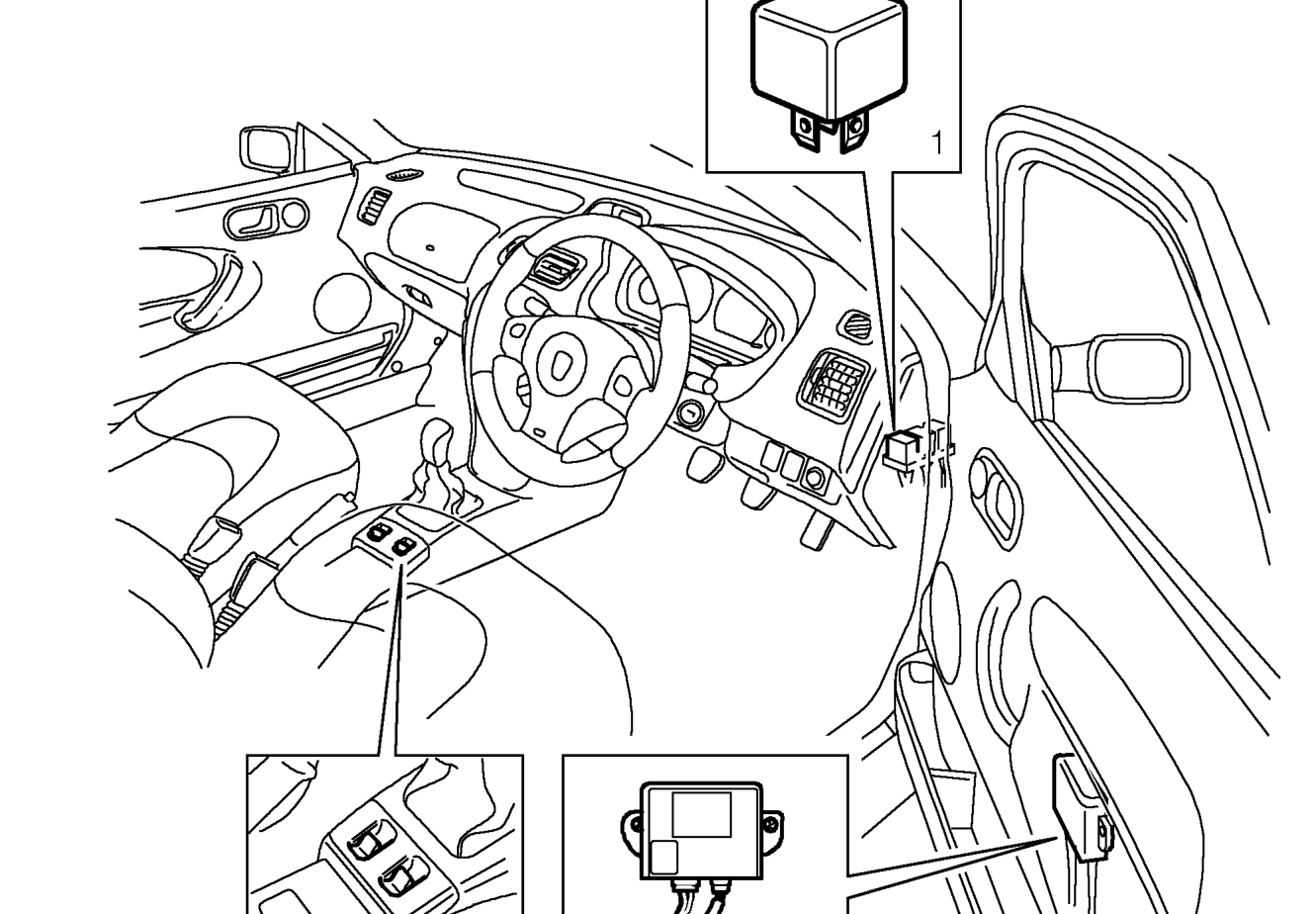

Electric window operation

ELECTRIC WINDOW OPERATION

1. Window relay
2. Window lift control unit

The two window lift system is controlled by switches fitted in the base of the centre console. When the starter switch is turned to position I the multi-function unit provides an earth to the window lift relay which feeds battery voltage to the driver and passenger switches. Subsequent operation of either switch provides power to the respective window motor causing the window regulator assembly to lift or lower the window glass accordingly.

3. Window lift switches

Battery supply from the electric window relay to the door window switches is via fuses (20 A), one for each door which are located in the satellite section of the passenger compartment fusebox.

For detailed electrical information refer to ERL (Electrical Reference Library) and circuit diagrams.
