FRONT DOOR TRIM CASING

Service repair no - 76.34.01

Remove

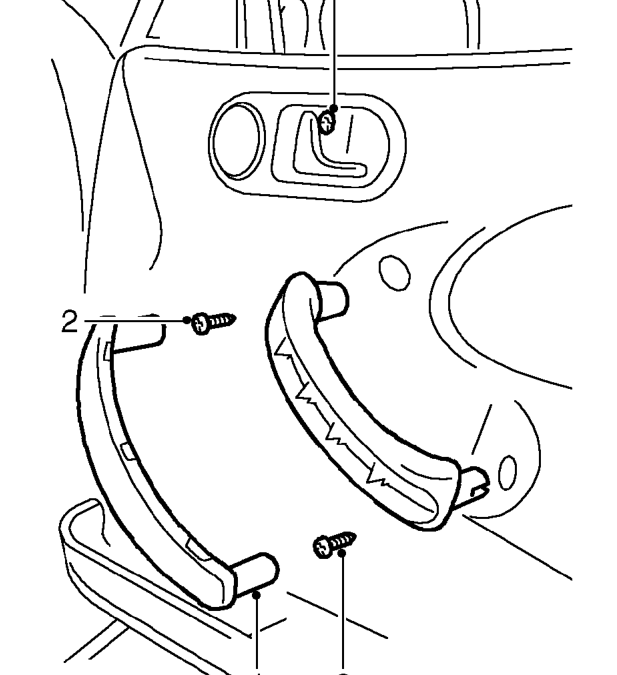

Front door trim casing – Service repair no - 76.34.01
  1. Carefully prize door pull escutcheon from door pull - if fitted.
  2. Remove 2 screws securing door pull to door.
  3. Remove screw securing door handle escutcheon to door.

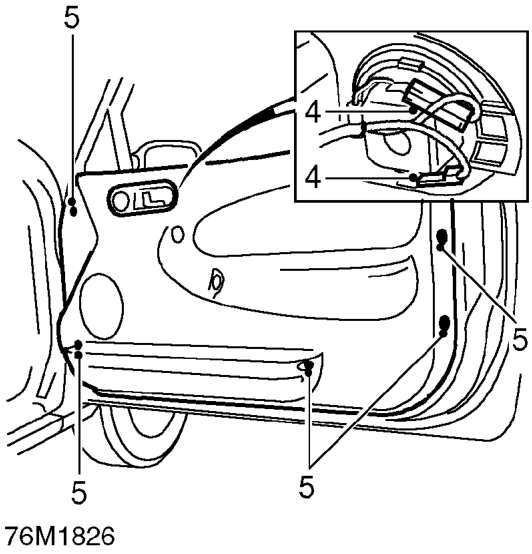

Front door trim casing – Remove screw securing door handle escutcheon to door.
  1. Move door handle escutcheon rearwards, release escutcheon from door and disconnect 2 Lucar connectors from tweeter.
  2. Remove 5 screws securing trim casing to door.
  3. Release trim casing clips from door, release casing from sill button and remove casing.

Refit

  1. Position trim casing over sill button and secure to door with clips.
  2. Fit and tighten screws securing trim casing to door.
  3. Fit door pull and tighten screws.
  4. Fit door pull escutcheon - if fitted.
  5. Connect Lucar connectors to tweeter and fit door handle escutcheon to door handle.
  6. Fit and tighten screw securing door handle escutcheon.
