Front door outside handle

FRONT DOOR OUTSIDE HANDLE

Service repair no - 76.58.07

Remove

NOTE: Raise door glass fully. Fit protection on door to avoid damage to paintwork.

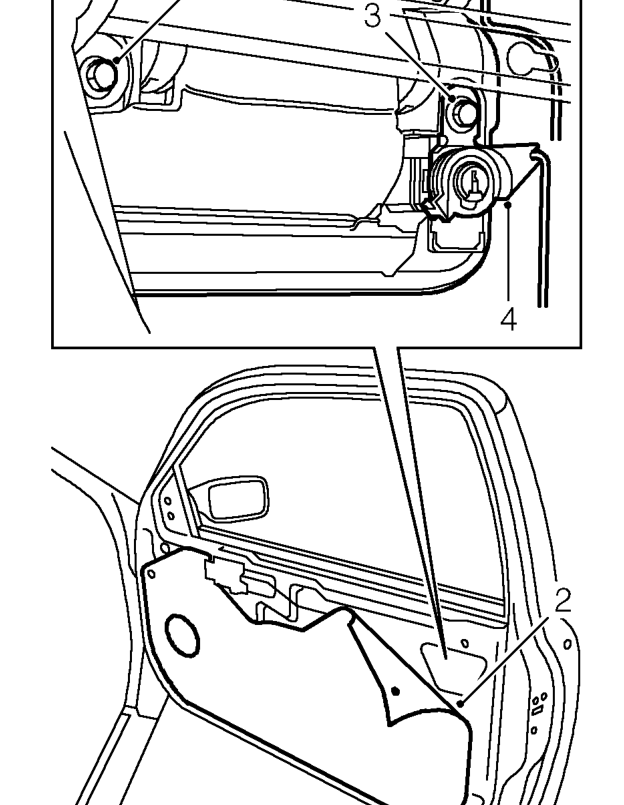

1. Remove front door plastic sheet. See Interior trim components.

2. Remove 2 bolts securing outside handle to door.
3. Release control rod and private lock rod from handle.
4. Remove handle from door.

Refit

1. Position handle to door and connect control rods.
2. Fit bolts and tighten to 9 Nm.
3. Fit front door plastic sheet. See Interior trim components.
