Exterior mirror glass

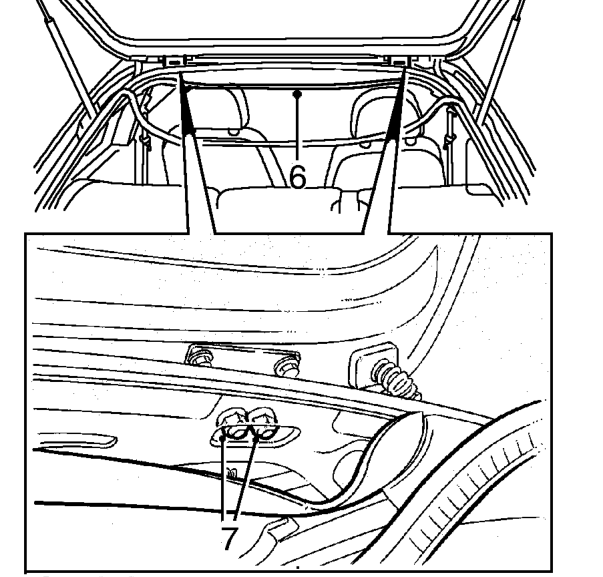

6. Lower rear of headlining to gain access to hinge bolts.
7. Loosen 4 bolts and adjust position of tailgate.
8. Tighten bolts.
9. Close tailgate and check alignment against both rear quarter panels.
10. Open tailgate and re-adjust tailgate position if necessary.
11. Close tailgate and check alignment against both rear quarter panels.
12. Apply sealant to both hinges.
13. Wipe away any excess sealant with thinners.
14. Reposition headlining and secure with trim studs.
15. Fit seal to tailgate to aperture.

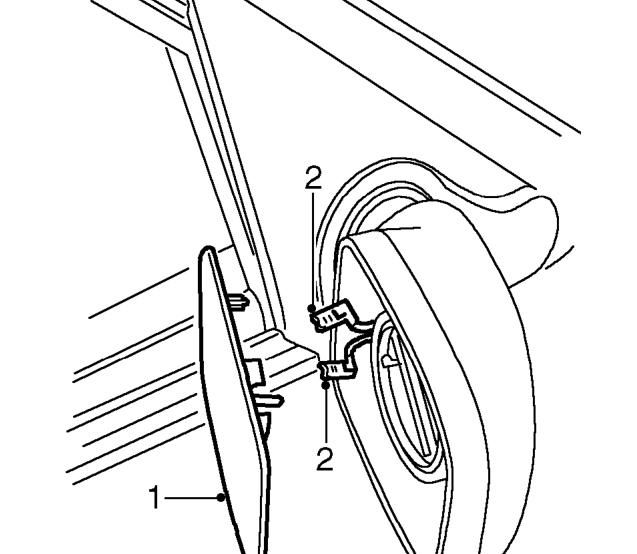

EXTERIOR MIRROR GLASS

Service repair no - 76.11.08

Remove

1. Carefully release mirror glass from clips.
2. Disconnect 2 Lucar connectors.
3. Remove mirror glass.

Refit

1. Position glass to mirror and connect lucars.
2. Fit glass to mirror and secure clips.
