THROTTLE CABLE - MODELS WITH INTERCOOLER

Service repair no - 19.20.06

Remove

Throttle cable - models with intercooler – Service repair no - 19.20.06

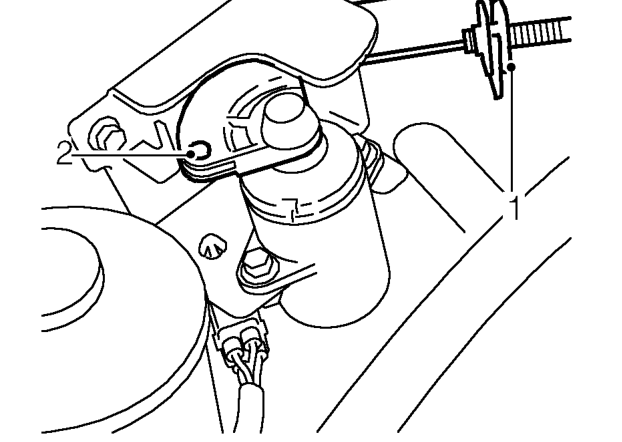

  1. Release cable adjusting nut from abutment bracket.
  2. Release inner cable from cam on TP sensor.
Throttle cable - models with intercooler – Release inner cable from cam on TP sensor.

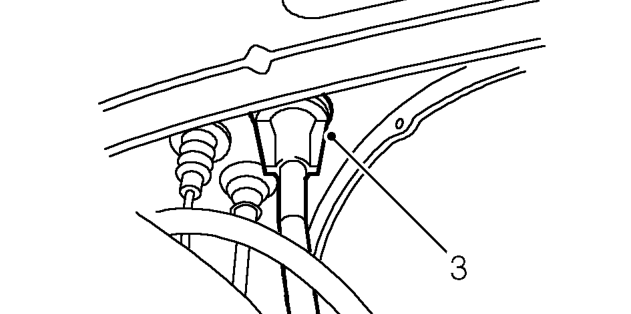

  1. Rotate collar through 90° and release cable from bulkhead.
Throttle cable - models with intercooler – Rotate collar through 90° and release cable from bulkhead.

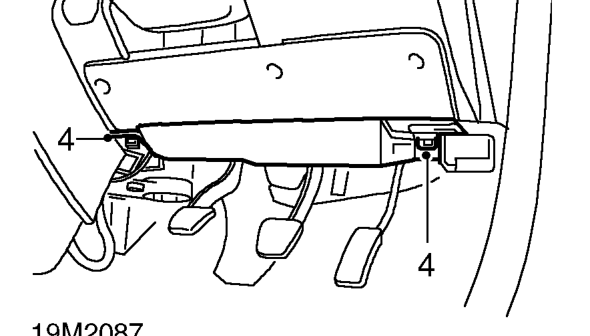

  1. Release 2 turnbuckles and remove closing panel.
Throttle cable - models with intercooler – Release 2 turnbuckles and remove closing panel.

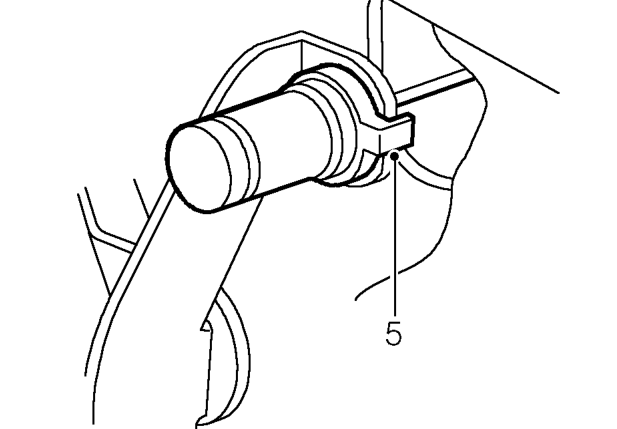

  1. Depress nylon clips and disconnect throttle cable from pedal.
  2. Remove throttle cable.

Refit

  1. Feed cable through bulkhead and connect inner cable to pedal.
  2. Fit closing panel and secure with turnbuckles.
  3. Smear rubber grease of both sides of the rubber seal and secure cable to bulkhead.
  4. Connect throttle cable to cam on TP sensor.
  5. Connect cable adjusting nut to abutment bracket.
  6. Adjust throttle cable. See Adjustments.
