Rover 200 Workshop Manual (1995-1999)11 · Engine management system - EDC
11 · Engine

Air cleaner element (page 2 of 2)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Engine management system - EDCAir cleaner element · page 2 of 2
Diagram

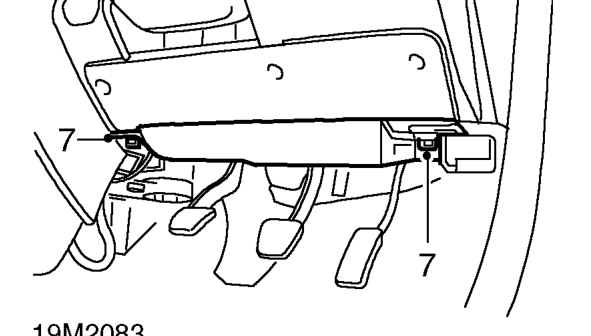

  1. Release 2 turnbuckles and remove closing panel.
Release 2 turnbuckles and remove closing panel.

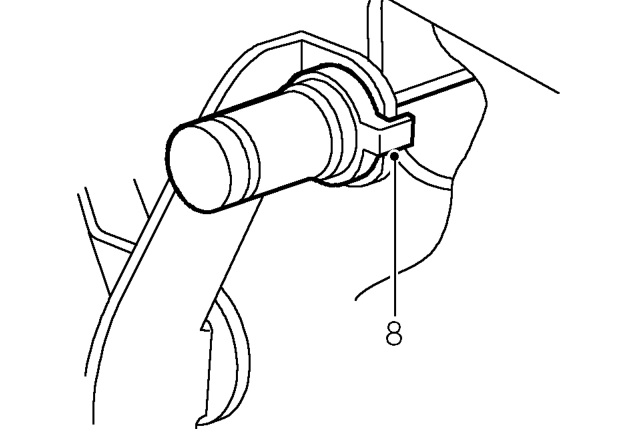

  1. Depress nylon clips and disconnect throttle cable from pedal.
  2. Remove throttle cable.

Refit

  1. Feed new cable through bulkhead and connect inner cable to pedal.
  2. Fit closing panel and secure with turnbuckles.
  3. Smear rubber grease on both sides of the rubber seal and secure cable to bulkhead.
  4. Refit throttle cable to clip.
  5. Route throttle cable through abutment bracket and connect to throttle lever.
  6. Tighten nut securing throttle cable to abutment bracket.
  7. Adjust throttle cable. See Adjustments.
  8. Fit engine acoustic cover. See BODY, Exterior fittings.
