TURBOCHARGER - MODELS WITH INTERCOOLER

Service repair no - 19.42.01

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove engine acoustic cover. See BODY, Exterior fittings.
  2. Remove front pipe to manifold gasket. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

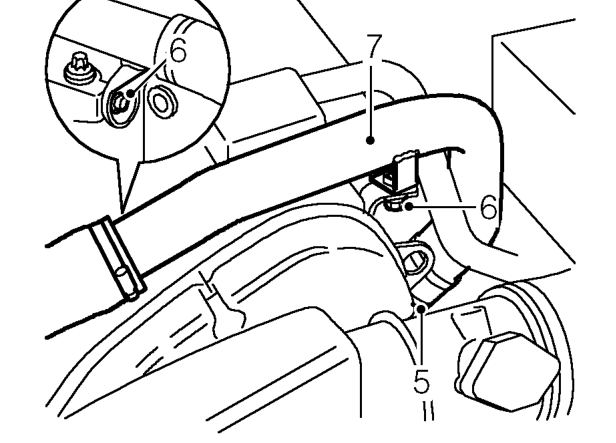

Turbocharger - models with intercooler – Remove front pipe to manifold gasket. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  1. Loosen clip securing pipe to turbocharger assembly.
  2. Remove 2 bolts securing turbocharger pipe to cylinder head.
  3. Disconnect pipe from turbocharger.

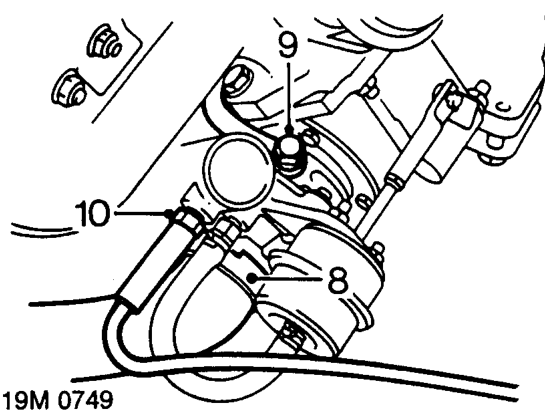

Turbocharger - models with intercooler – Disconnect pipe from turbocharger.
  1. Loosen clip and disconnect air intake hose from turbocharger.
  2. Remove banjo bolt securing oil feed pipe to turbocharger, discard 2 sealing washers.

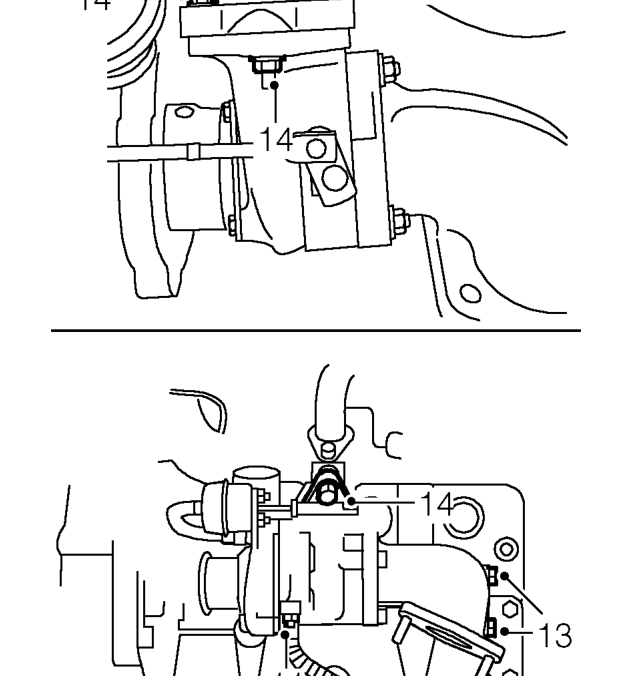

  3. Disconnect pressure sensing pipe from turbocharger.
Turbocharger - models with intercooler – Disconnect pressure sensing pipe from turbocharger.
  1. Remove 2 bolts securing oil drain pipe flange to turbocharger.
  2. Remove and discard gasket.
  3. Remove 2 bolts securing exhaust manifold to mounting bracket.
