ENGINE COOLANT TEMPERATURE (ECT) SENSOR

Service repair no - 18.30.10

Remove

  1. Remove engine acoustic cover. See BODY, Exterior fittings.

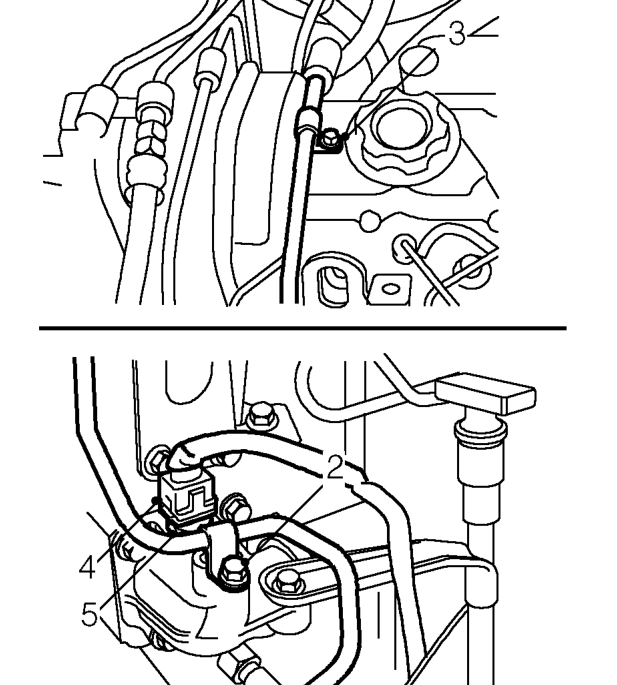

Engine coolant temperature (ect) sensor – Remove engine acoustic cover. See BODY, Exterior fittings.
  1. Remove bolt securing brake servo vacuum pipe to coolant outlet elbow.
  2. Remove bolt securing vacuum pipe to camshaft cover and move pipe aside.
  3. Disconnect multiplug from ECT sensor.
  4. Position drain tray to collect any spillage.
  5. Remove ECT sensor from coolant outlet elbow.

Refit

  1. Apply Loctite 577 to threads of ECT sensor.
  2. Fit ECT sensor to outlet elbow and tighten to 15 Nm.
  3. Fit bolt securing brake servo vacuum pipe to camshaft cover and tighten to 10 Nm.
  4. Fit bolt securing brake servo hose to coolant outlet elbow and tighten to 25 Nm.
  5. Connect multiplug to ECT sensor.
  6. Top-up cooling system. See MAINTENANCE.
  7. Fit engine acoustic cover. See BODY, Exterior fittings.
