AIR CLEANER ELEMENT

Service repair no - 19.10.10

Remove

  1. Release coolant pipe from clips on air cleaner.

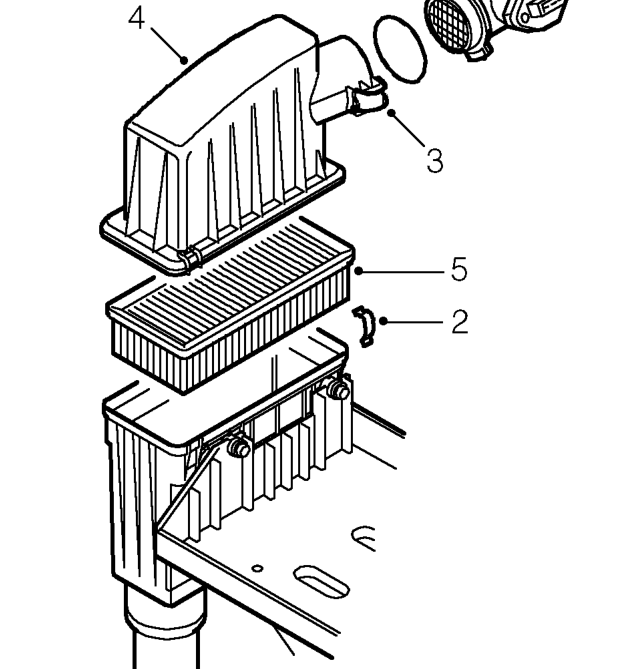

Air cleaner element – Release coolant pipe from clips on air cleaner.
  1. Release 4 clips securing 2 halves of air cleaner.
  2. Release 2 clips securing top half of air cleaner to MAF sensor.
  3. Release top half of air cleaner and position aside.
  4. Remove and discard air cleaner element.

Refit

  1. Clean inside of air cleaner casing.
  2. Fit new air cleaner element in casing.
  3. Position top half of air cleaner casing and secure with clips.
  4. Secure air cleaner to MAF sensor with clips.
  5. Secure coolant pipe to clips on air cleaner.

THROTTLE CABLE - MODELS WITHOUT INTERCOOLER

Service repair no - 19.20.06

Remove

  1. Remove engine acoustic cover. See BODY, Exterior fittings.

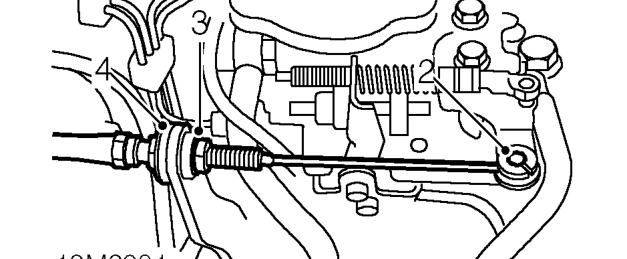

Throttle cable - models without intercooler – Remove engine acoustic cover. See BODY, Exterior fittings.
  1. Release throttle cable from throttle lever.
  2. Loosen nut securing throttle cable to abutment bracket.
  3. Release throttle cable from abutment bracket.
  4. Release throttle cable from clip.

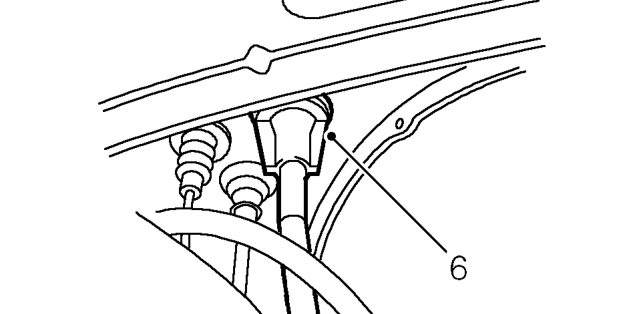

Throttle cable - models without intercooler – Release throttle cable from clip.
  1. Rotate collar through 90° and release cable from bulkhead.
