Fuel delivery systemFuel tank breathing system - ’L’ series

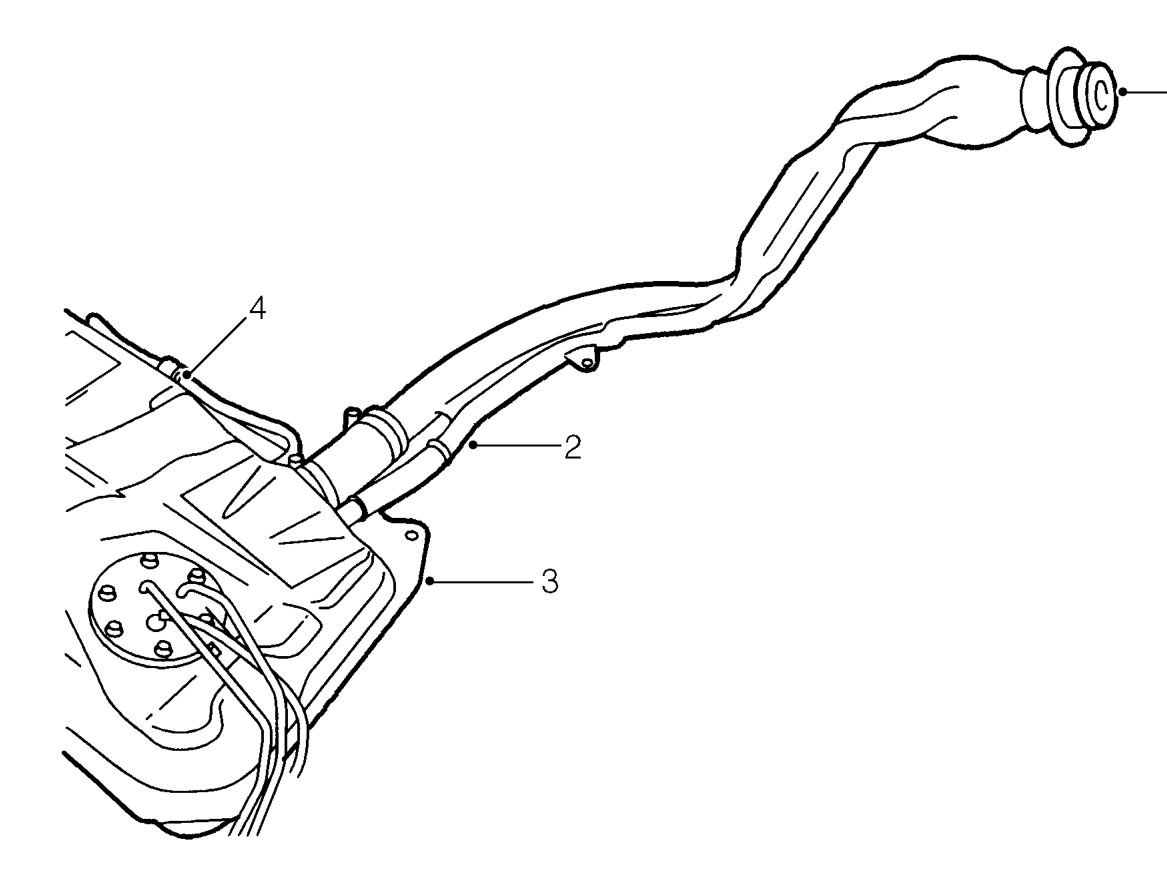

Fuel tank breathing system - ’L’ series

1. Filler cap
2. Filler neck breather pipe
3. Fuel tank
4. Breather valve

FUEL TANK BREATHING SYSTEM - ’L’ SERIES

When filling the fuel tank, air trapped in the fuel tank by the rising fuel level is allowed to vent to the top of the filler neck by a separate breather pipe.

With the filler cap in place, fuel tank breathing is via a two-way breather valve which allows expanding fumes to exit the tank.
