Fuel tank draining - ’k’ series

FUEL TANK DRAINING - ’K’ SERIES

Service repair no - 19.55.02

WARNING: Before removing the fuel tank from the vehicle it must be drained.

Drain

WARNING: Petrol/gasoline vapour is highly flammable and in confined spaces is also explosive and toxic. Always have a fire extinguisher containing FOAM, CO2, GAS or POWDER close at hand when handling or draining fuel. See INTRODUCTION, Information.

1. Remove fuel tank filler cap and allow fuel tank to vent in an open space before commencing work.
2. Disconnect battery earth lead.

3. Using a bowser, drain fuel from the tank into a sealed container. Follow the manufacturers instructions for the connection and safe use of the bowser.
4. Continue draining until air bubbles appear and fuel ceases to flow.
5. Disconnect bowser from fuel tank.

FUEL TANK DRAINING - ’L’ SERIES

Service repair no - 19.55.02

WARNING: Before removing the fuel tank from the vehicle it must be drained. Use gloves or suitable protective barrier cream to protect the hands against contact with diesel fuel.

1. Remove fuel tank filler cap and allow fuel tank to vent in an open space before commencing work.
2. Disconnect battery earth lead.

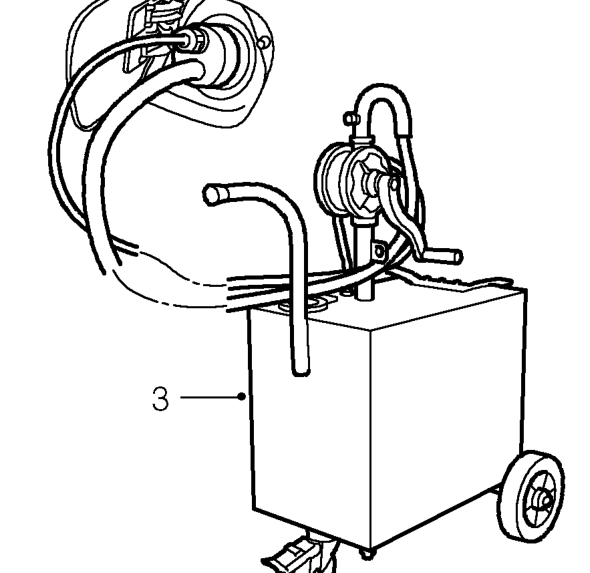

3. Using a bowser, drain fuel from the tank into a sealed container. Follow the manufacturers instructions for the connection and safe use of the bowser.
4. Continue draining until air bubbles appear and fuel ceases to flow.
5. Disconnect bowser from fuel tank.
