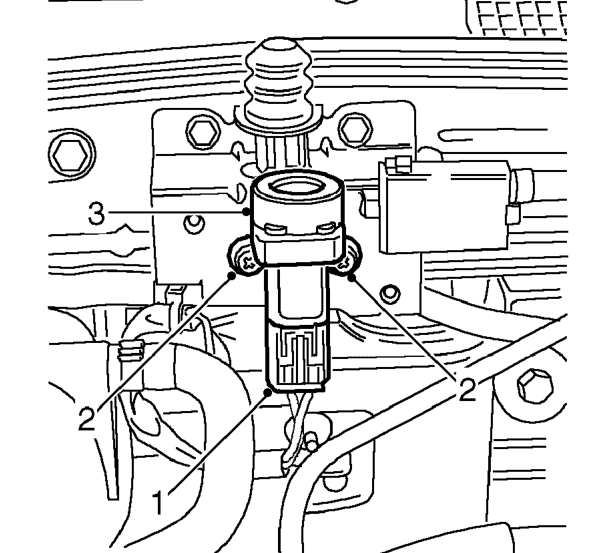

Inertia fuel shut-off (ifs) switch

INERTIA FUEL SHUT-OFF (IFS) SWITCH

Service repair no - 19.22.09

Remove

1. Disconnect multiplug from IFS switch.
2. Remove 2 screws securing IFS switch to mounting bracket.
3. Remove IFS switch.

Refit

1. Align IFS switch to mounting bracket.
2. Fit screws securing IFS switch to mounting bracket and tighten to 2 Nm.
3. Connect multiplug to IFS switch.
4. Press top of IFS switch to reset.

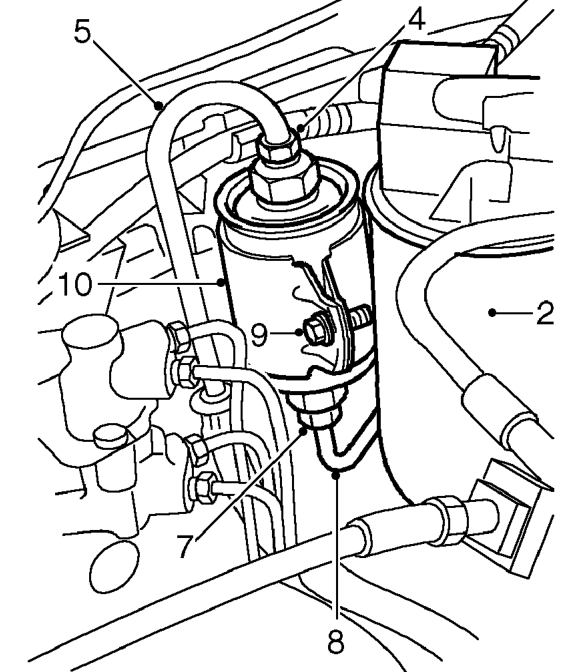

FUEL FILTER - ’K’ SERIES

Service repair no - 19.25.02

Remove

1. Disconnect battery earth lead.

2. Release evaporative emission canister from mounting bracket and move aside.
3. Position absorbent cloth around fuel union.
4. Loosen union to relieve fuel pressure.

CAUTION: To prevent damage to fuel system pipes and components, use two spanners when loosening or tightening unions.

5. Disconnect fuel outlet pipe from fuel filter.
6. Position absorbent cloth around fuel filter union.
7. Loosen union and allow fuel to seep into cloth.
8. Disconnect fuel inlet pipe from fuel filter.
9. Loosen bolt securing fuel filter to bracket.
10. Remove and discard filter.
