Rover 200 Workshop Manual (1995-1999)12 · Fuel delivery system
12 · Engine

Fuel tank - ’k’ series

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Fuel tank - ’k’ series
Fuel delivery systemFuel tank - ’k’ series · page 1 of 3

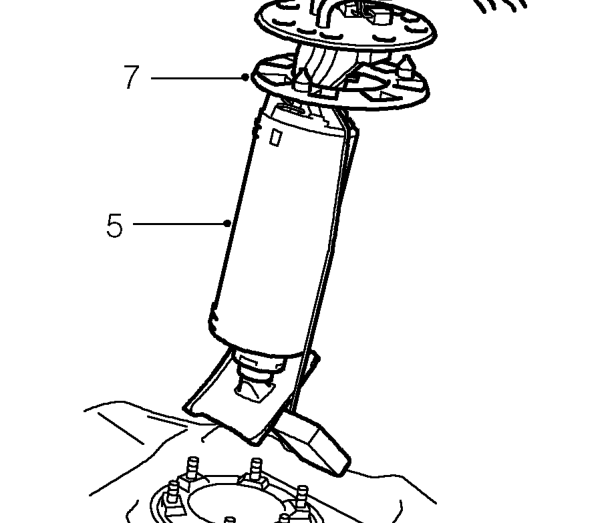

Diagram
  1. Remove 6 nuts securing fuel pump housing to fuel tank.
  2. Release fuel pump housing from fuel tank.
  3. Remove fuel pump housing from fuel tank.
  4. Remove seal from fuel pump housing.

Refit

  1. Clean mating face of fuel pump housing and fuel tank.
  2. Clean seal and fit to fuel pump housing.
  3. Fit fuel pump housing to fuel tank.
  4. Fit nuts securing fuel pump housing to fuel tank and tighten to 9 Nm.
  5. Connect fuel return hose to fuel pump and secure with clip.
  6. Connect fuel feed hose to fuel pump and secure with clip.
  7. Refit fuel tank assembly. See this section.

FUEL TANK - ’K’ SERIES

Service repair no - 19.55.01

Remove

  1. Disconnect battery earth lead.
  2. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Drain fuel tank. See this section.
Fuel tank - ’k’ series – Drain fuel tank. See this section.

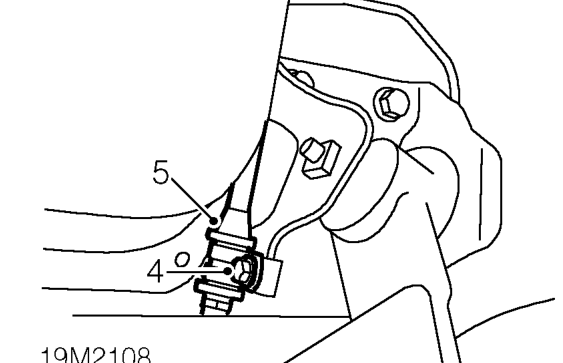

  1. Remove bolt securing handbrake cable to ’H’ frame LH mounting.
  2. Release handbrake cable from ’H’ frame mounting.
Fuel tank - ’k’ series – Release handbrake cable from ’H’ frame mounting.

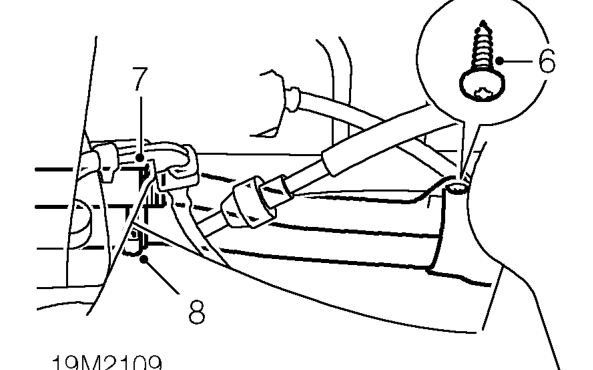

  1. Remove screw securing filler neck to body.
  2. Release clip and disconnect breather hose from filler neck.
  3. Loosen clip and disconnect filler hose from filler neck.
