Fuel delivery systemFuel tank - ’k’ series · page 2 of 3

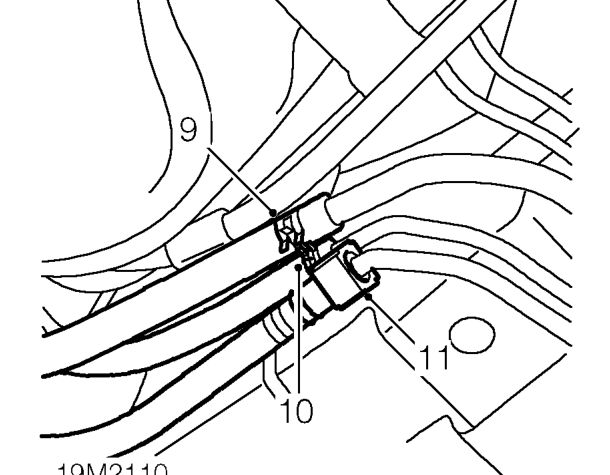

9. Release clip and disconnect fuel feed hose from fuel feed pipe.
10. Release clip and disconnect fuel return hose from fuel return pipe.
11. Clean area around quick fit connector and disconnect breather hose from pipe.
12. Fit wooden block to jack and position jack to support fuel tank.

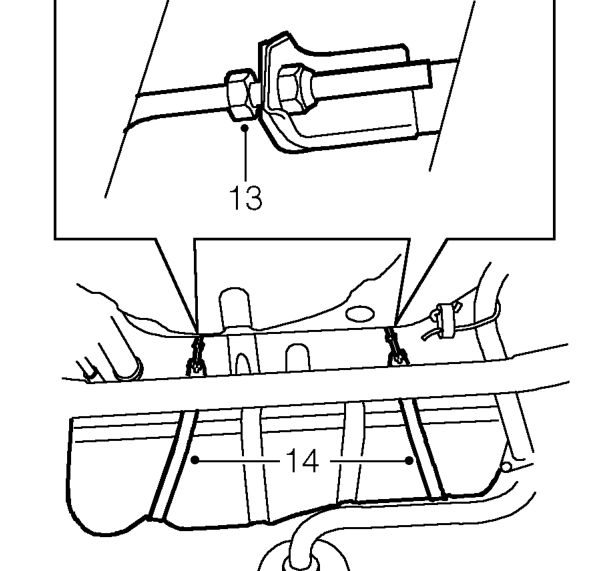

13. Loosen 2 fuel tank strap locknuts and remove 2 tank strap nuts.
14. Release fuel tank straps from vehicle body.
15. Using assistance, release fuel tank from body and lower.

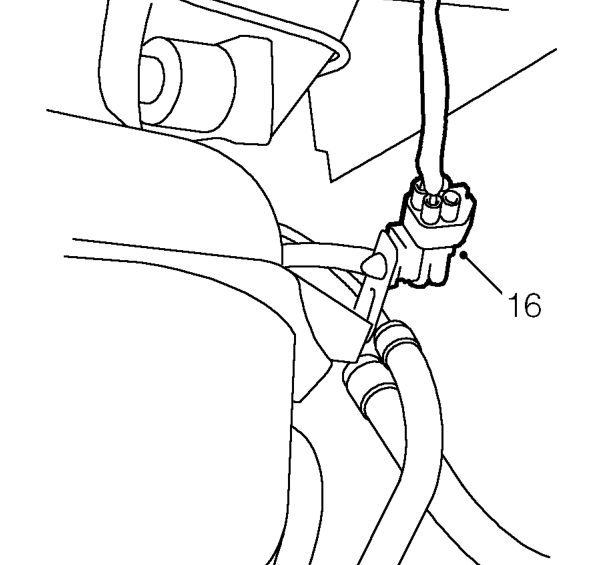

16. Disconnect fuel pump multiplug from harness.
17. Remove fuel tank from beneath vehicle. Do not carry out further dismantling if component is removed for access only.

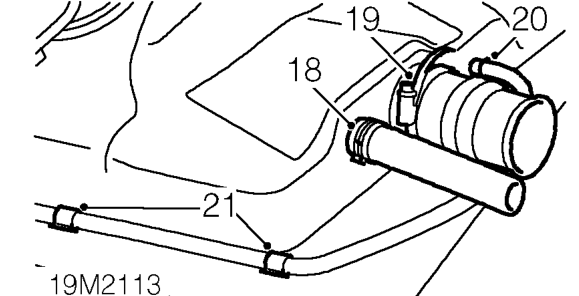

18. Release clip securing breather hose to fuel tank and remove breather hose.
19. Loosen clip securing filler neck hose to fuel tank and remove filler neck hose.
20. Release clip and disconnect breather hose from fuel tank.
21. Release breather hose from 2 clips on tank and remove hose.
