Electric fuel pump - ’k’ series

Refit

1. Fit fuel filter to fuel filter bracket.
2. Tighten fuel filter bracket clamp bolt.
3. Fit fuel filter bracket to body mounting.
4. Remove plugs from connections.
5. Connect fuel outlet hose to filter and secure clip.
6. Connect fuel inlet hose to filter and secure clip.
7. Loosen bleed screw.
8. Repeatedly squeeze fuel hand primer until fuel, issuing from bleed screw is free from air bubbles; tighten bleed screw.
9. Continue to squeeze fuel hand primer until resistance is felt.
10. Remove absorbent cloth.

ELECTRIC FUEL PUMP - ’K’ SERIES

Service repair no - 19.45.08

NOTE: The fuel pump and fuel gauge tank unit are integral parts of the fuel pump housing and cannot be renewed separately.

Remove

1. Remove fuel tank assembly. See this section.

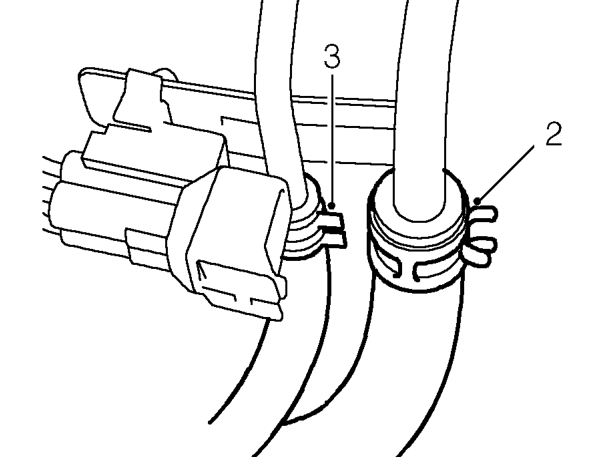

2. Release clip and disconnect fuel feed hose from fuel pump.
3. Release clip and disconnect fuel return hose from fuel pump.
