Check engine and transmission

CHECK ENGINE AND TRANSMISSION

1. Visually inspect for oil leaks from engine and transmission, pay particular attention to areas of gaskets and seals.

ENGINE OIL AND FILTER - ’K’ SERIES

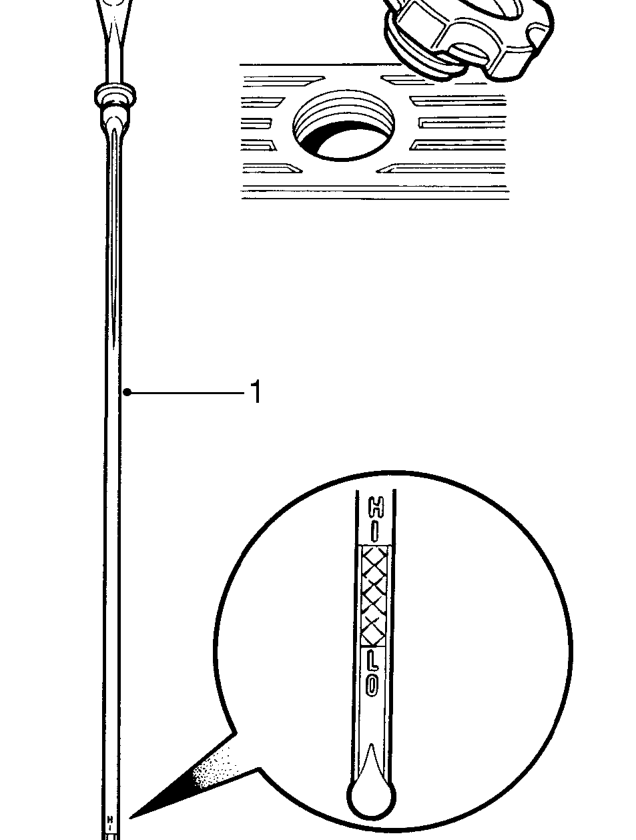

Oil level check

Always check oil level and drain oil with vehicle standing on level ground and use engine oil of specification 10w/40 for topping up and refilling.

1. Withdraw dipstick and wipe blade. Re-insert dipstick fully, withdraw it and check oil level which must be maintained between minimum mark ’LO’ and maximum mark ’HI’ on dipstick.
2. If required, remove filler cap and top-up with new engine oil to specification 10w/40. See INFORMATION, Capacities, fluids and lubricants.
