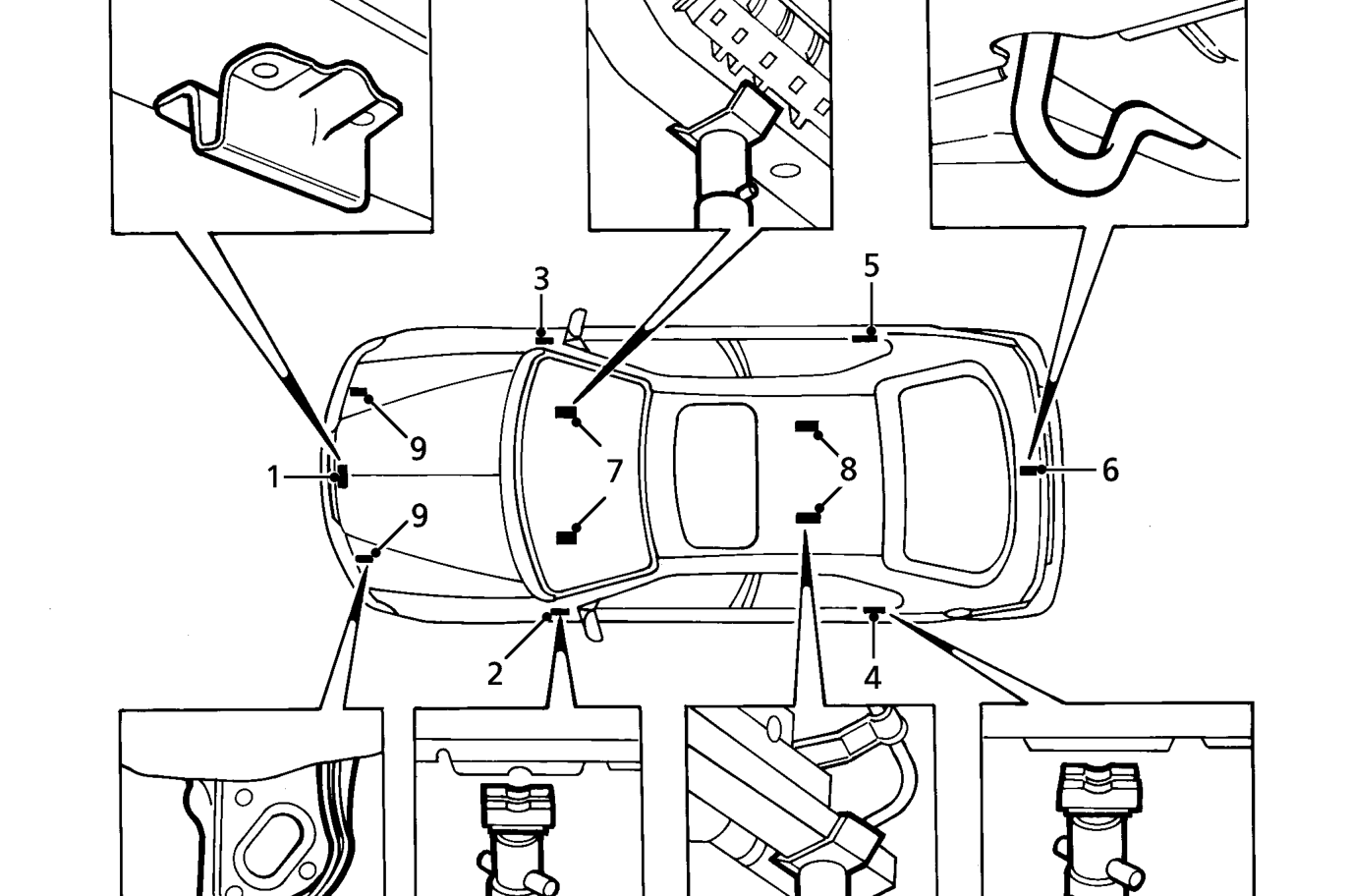

Jacking, supporting and towing

JACKING, SUPPORTING AND TOWING

1. Central jacking point - front
2. LH sill reinforced bracket front
3. RH sill reinforced bracket front
4. LH sill reinforced bracket rear
5. RH sill reinforced bracket rear

WARNING: In accordance with normal workshop practice, and to avoid the possibility of damage or personal injury, work must not be carried out on or under a vehicle when it is supported solely on a jack. Place safety supports under the sill reinforced jacking areas (2, 3, 4 or 5).

6. Central jacking point and lashing/towing eye - rear
7. Longitudinal members - front
8. Longitudinal members - rear
9. Lashing/towing eyes - front

WARNING: Do not position a jack, jack stand or wheel free support under the suspension attachment points.
