Rover 400 Body Repair Manual (1995-2000)04 · Restraint systems
04 · Body & interior

Disposal

Make
Rover
Model
400 Body Repair Manual
Year
1995–2000
Section
Precautions › Disposal
Restraint systemsDisposal

Disposal

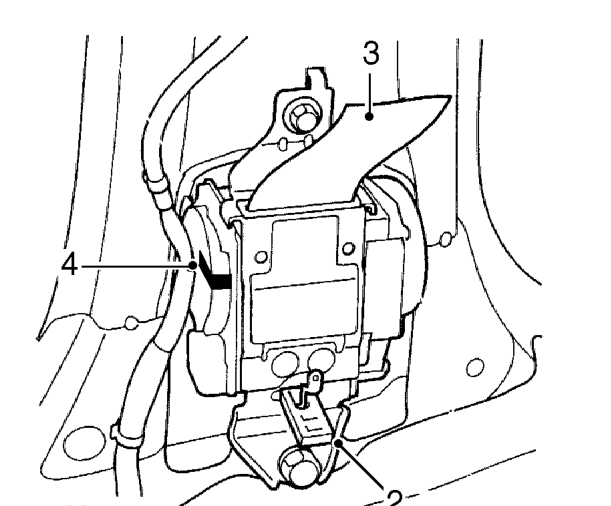

  1. Remove ’B’ post lower finisher. See BODY, Interior trim components.
Disposal – Remove ’B’ post lower finisher. See BODY, Interior trim components.
  1. Set sensor lock pin to LOCK position: Pull pin up, press in and turn 90°clockwise.
  2. Pull out fully seat belt webbing from reel and cut-off webbing.
  3. Mark across FRONT side of retractor.

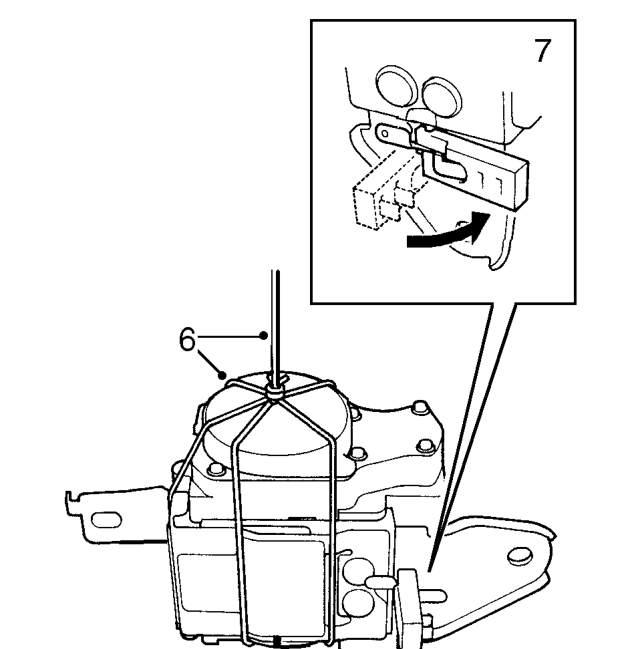

  4. Remove front seat belt reel and pre-tensioner. See BODY, Seats and seat belts.
Disposal – Remove front seat belt reel and pre-tensioner. See BODY, Seats and seat belts.
  1. Securely attach wire to pre-tensioner reel as shown, so that marked side faces down and pre-tensioner hangs level.
  2. Disengage seat belt pre-tensioner lock.

CAUTION: Once sensor lock has been disengaged, take care not to drop or knock pre-tensioner reel.
