Rover 400 Body Repair Manual (1995-2000)05 · Body
05 · Body & interior

Rear console

Make
Rover
Model
400 Body Repair Manual
Year
1995–2000
Section
Interior trim components › Rear console
BodyRear console · page 1 of 2

REAR CONSOLE

Service repair no - 76.25.04

Remove

  1. Slide both front seats forward for access.

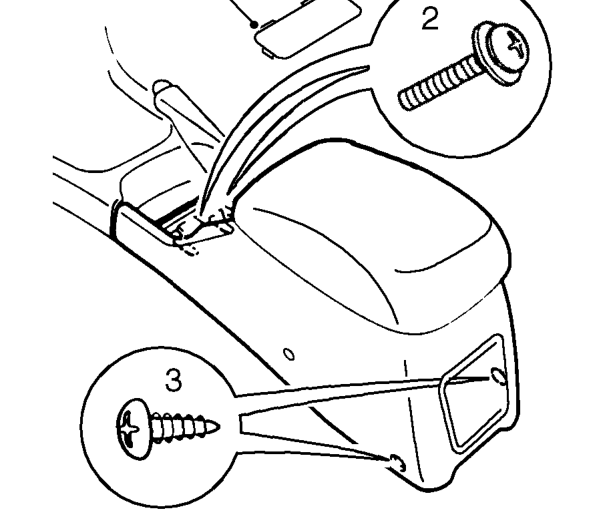

Rear console – Slide both front seats forward for access.
  1. Remove cover and remove 2 bolts securing front end of rear console.
  2. Remove 2 screws securing rear of console.

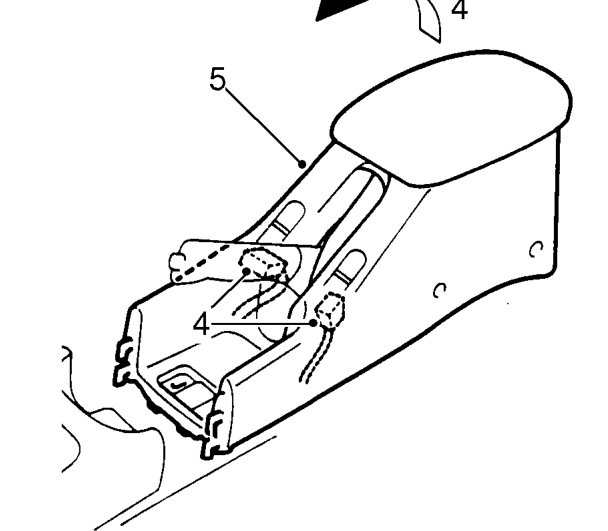

Rear console – Remove 2 screws securing rear of console.
  1. Raise console and disconnect multiplugs from window lift switches.
  2. Remove console.
