Rover 400 Body Repair Manual (1995-2000)05 · Body
05 · Body & interior

Headlining - 4 door

Make
Rover
Model
400 Body Repair Manual
Year
1995–2000
Section
Interior trim components › Headlining - 4 door
BodyHeadlining - 4 door

HEADLINING - 4 DOOR

Service repair no - 76.64.15

Remove

  1. Remove both ’A’ post finishers. See this section.
  2. Remove both ’B’ post upper finishers. See this section.
  3. Remove both ’D’ post upper trim finishers. See this section.
  4. Remove roof lamp. See ELECTRICAL, Repairs.
Headlining - 4 door – Remove roof lamp. See ELECTRICAL, Repairs.

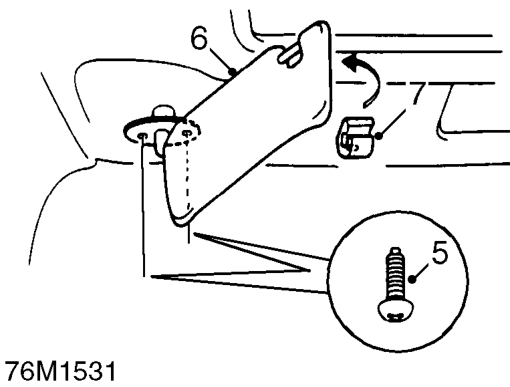

  1. Release sun visor from clip and remove 2 screws securing each sun visor.
  2. Remove sun visors.
  3. Remove 2 screws securing sun visor clips and remove clips.
Headlining - 4 door – Remove 2 screws securing sun visor clips and remove clips.

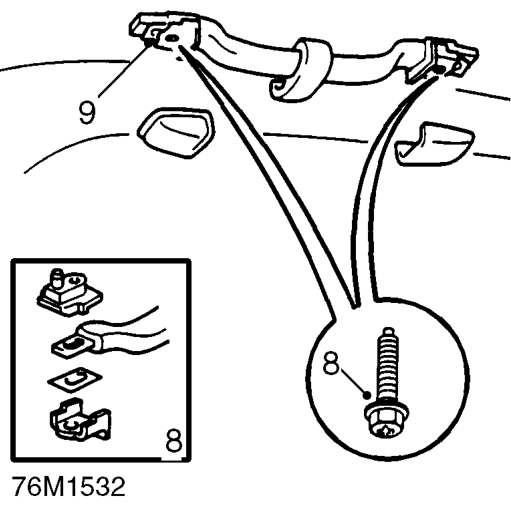

  1. Remove 2 covers and 2 screws securing each grab handle.
  2. Remove both rear grab handles.
Headlining - 4 door – Remove both rear grab handles.

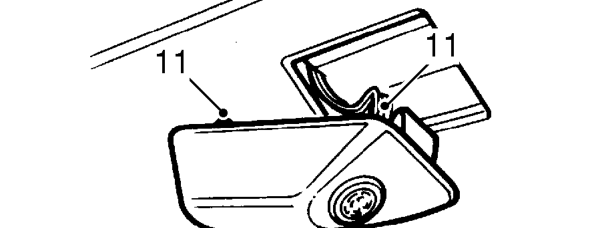

  1. Release alarm sensor from headlining and disconnect multiplug.
  2. Remove alarm sensor.
Headlining - 4 door – Remove alarm sensor.

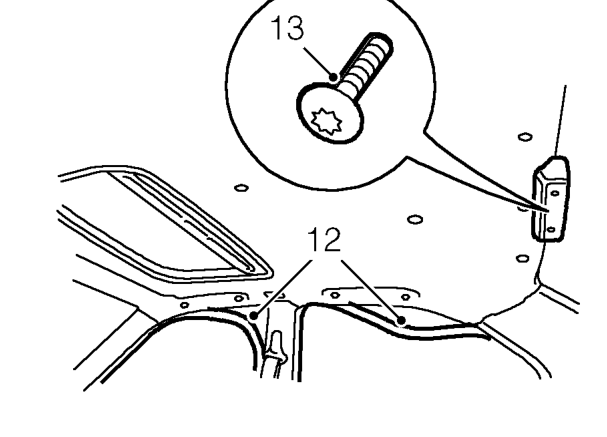

  1. Release sealing rubber from the top of each door aperture.
  2. Remove 2 Torx screws securing centre high mounted stop lamp trim, and remove trim.
