Workshop Manuals Factory service & repair Rover
Rover 400 Body Repair Manual (1995-2000)05 · Body
05 · Body & interior

Front console

Make
Rover
Model
400 Body Repair Manual
Year
1995–2000
Section
Interior trim components › Front console
BodyFront console

FRONT CONSOLE

Service repair no - 76.25.01

Remove

  1. Remove rear console. See this section.
  2. Slide front seats fully rearwards.
  3. Remove radio/CD player. See ELECTRICAL, Repairs.

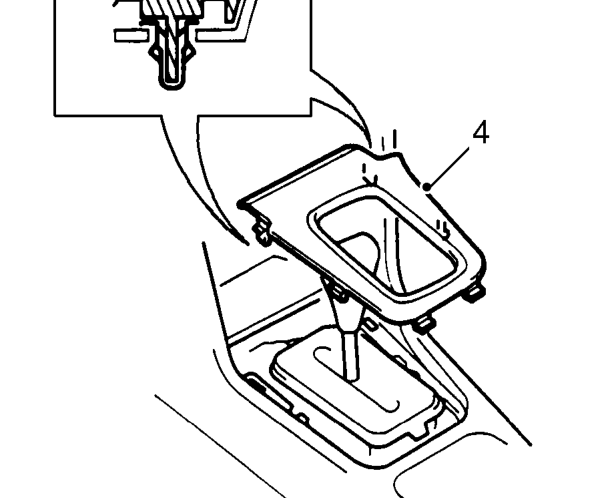

Front console – Remove radio/CD player. See ELECTRICAL, Repairs.
  1. Release clips and remove trim panel from gear selector housing.

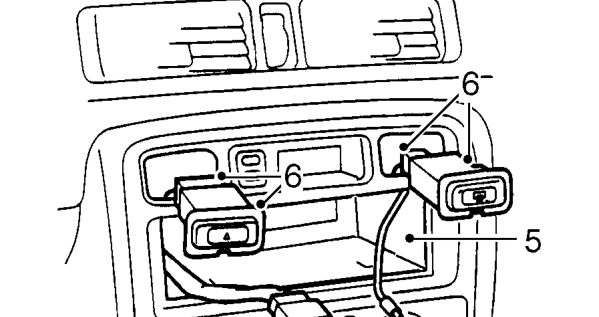

Front console – Release clips and remove trim panel from gear selector housing.
  1. Release and remove radio mounting socket.
  2. Release hazard and heated rear screen switches from console. Disconnect multiplugs and remove switches.

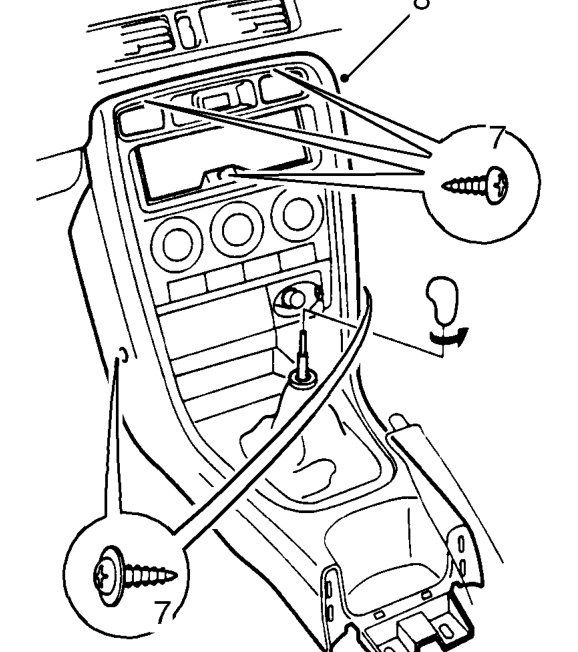

Front console – Release hazard and heated rear screen switches from console. Disconnect multiplugs and rem
  1. Remove 5 screws securing front console to fascia.
  2. Remove front console.
