Rover 400 Body Repair Manual (1995-2000)05 · Body
05 · Body & interior

Fascia panel

Make
Rover
Model
400 Body Repair Manual
Year
1995–2000
Section
Interior trim components › Fascia panel
BodyFascia panel · page 1 of 3

FASCIA PANEL

Service repair no - 76.46.23/99

Remove

WARNING: Refer to Restraint Systems precaution section. See RESTRAINT SYSTEMS, Precautions.

  1. Disconnect both battery leads, earth lead first.
  2. Remove front console. See this section.
  3. Remove passenger’s air bag. See RESTRAINT SYSTEMS, Repairs.
Fascia panel – Remove passenger’s air bag. See RESTRAINT SYSTEMS, Repairs.

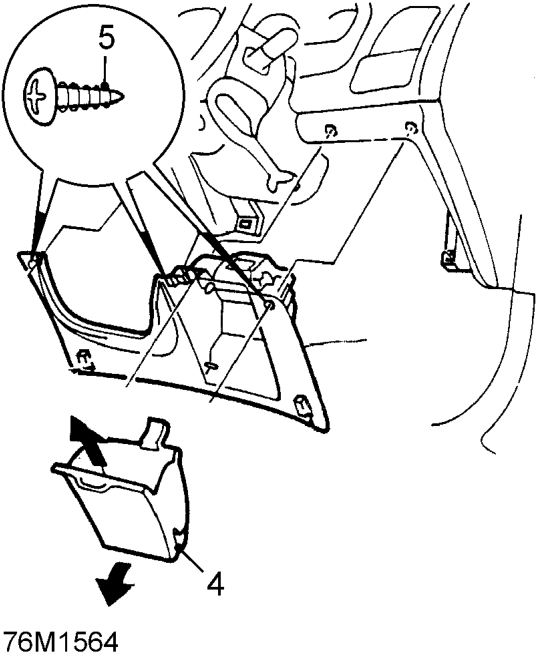

  1. Remove drivers pocket from fascia lower cover.
  2. Remove 3 screws securing lower cover, remove cover.
Fascia panel – Remove 3 screws securing lower cover, remove cover.

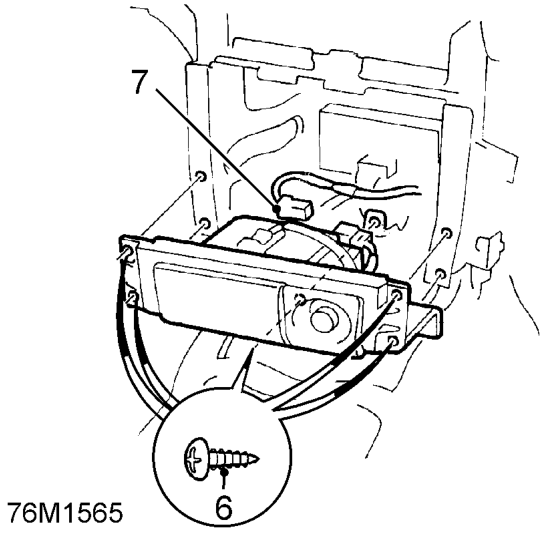

  1. Remove 5 screws securing ash tray to fascia.
  2. Disconnect cigar lighter multiplug and remove ash tray.
Fascia panel – Disconnect cigar lighter multiplug and remove ash tray.
  1. Disconnect heater control cables at heater.
