Rover 400 Body Repair Manual (1995-2000)05 · Body
05 · Body & interior

Fascia veneered panel (page 2 of 2)

Make
Rover
Model
400 Body Repair Manual
Year
1995–2000
Section
Interior trim components
BodyFascia veneered panel · page 2 of 2
Diagram

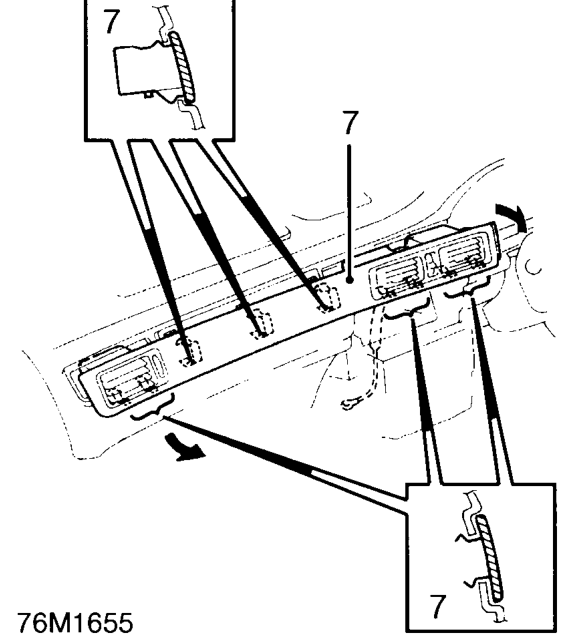

  1. Release and remove RH veneered panel from fascia complete with air vent.
Release and remove RH veneered panel from fascia complete with air vent.
  1. Release veneered panel from fascia noting position of retaining clips. Remove panel complete with air vents.

Refit

  1. Position veneered panel to fascia and secure retaining clips. Ensure air vent cable is routed correctly.
  2. Connect air vent cable to heater.
  3. Position RH veneered panel.
  4. Fit instrument surround, fit and tighten screws.
  5. Position fog lamp switch and connect multiplug. Fit switch blank to instrument surround.
  6. Fit front console. See this section.
