’B’ post lower finisher

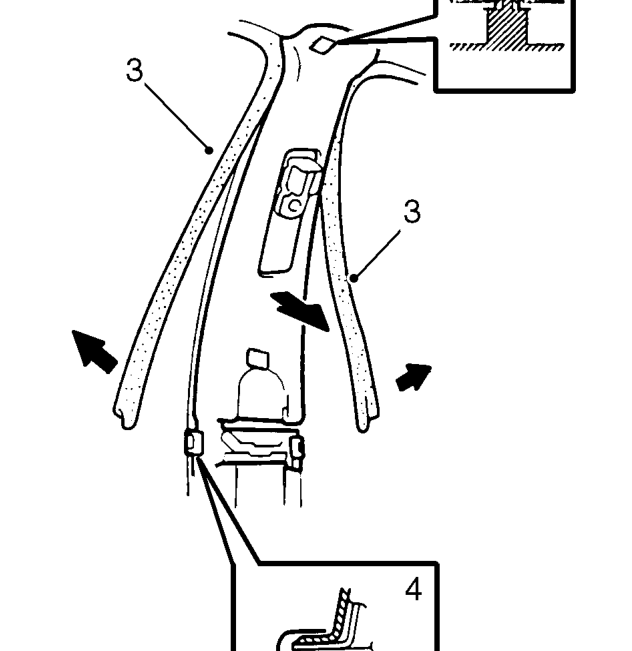

3. Release front and rear door sealing rubbers.
4. Remove 2 clips securing finisher and remove finisher from ’B’ post.

Refit

1. Fit finisher to ’B’ post and secure with clips.
2. Refit door sealing rubbers.
3. Position front seat belt and tighten bolt to 32 Nm. Fit bolt cover.
4. Fit ’B’ post lower finisher. See this section.

’B’ POST LOWER FINISHER

Service repair no - 76.13.29

Remove

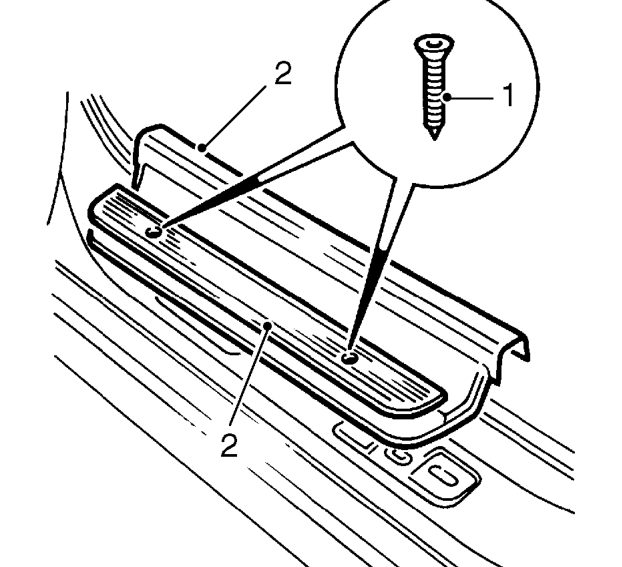

1. Remove 2 screws securing carpet retainer and tread plate for both front and rear doors.
2. Remove tread plate and carpet retainer.

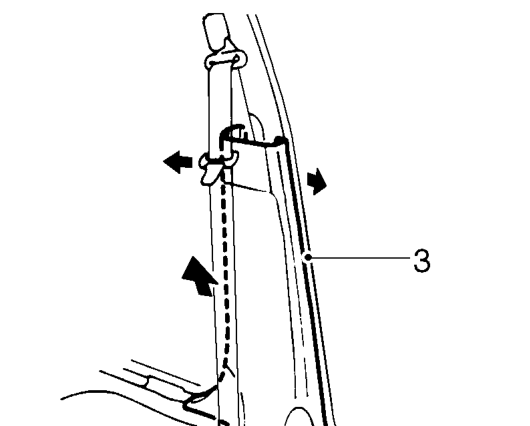

3. Release and remove finisher from ’B’ post.

Refit

1. Position and secure finisher to ’B’ post.
2. Position carpet retainer and tread plate and tighten screws.
