’A’ post finisher

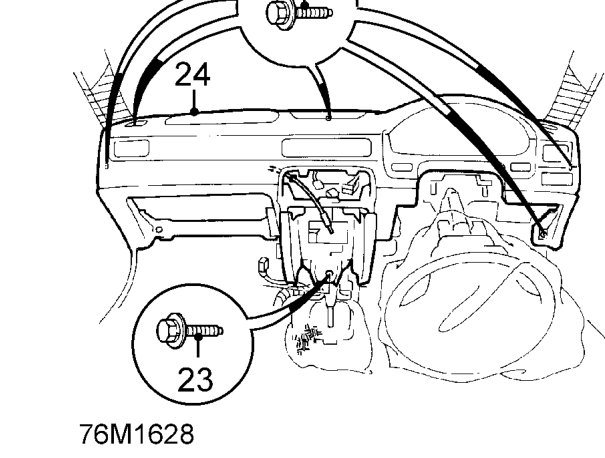

23. Remove 6 bolts securing fascia to body.

CAUTION: Protect the gear lever surround from damage when removing fascia.

24. With assistance, remove fascia assembly from vehicle.

Refit

1. With assistance, position fascia to vehicle.
2. Align fascia and tighten bolts to 9 Nm.
3. Fit side access panels.
4. Fit upper air vent.
5. Connect fascia earth lead.
6. Connect fascia harness multiplugs.
7. Raise steering column and fit clamp.
8. Tighten steering column clamp bolts to 22 Nm and column securing nuts to 16 Nm.
9. Fit steering column lower cover.
10. Connect multiplugs to alarm ECU and starter relay. Secure harness clips.
11. Connect centre vent cable to heater.
12. Position heater control panel, connect multiplugs and fit securing screws.
13. Connect and adjust heater control cables, See HEATING & VENTILATION, Repairs.
14. Position ash tray, connect multiplug and tighten securing screws.
15. Fit passengers air bag. See RESTRAINT SYSTEMS, Repairs.
16. Position fascia lower cover and tighten screws.
17. Fit drivers pocket to lower cover.
18. Fit front console. See this section.
19. Connect battery leads.

’A’ POST FINISHER

Service repair no - 76.13.26

Remove

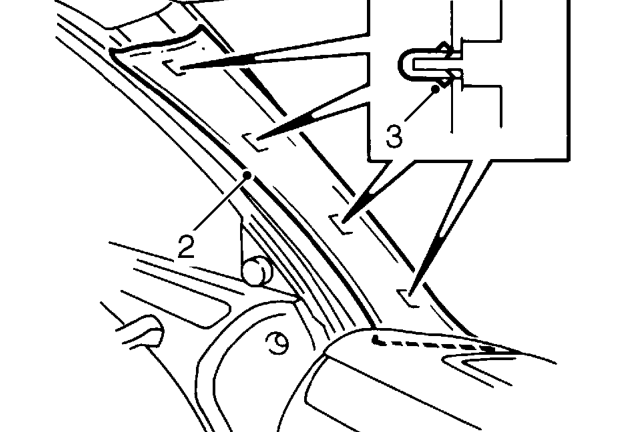

1. Release door sealing rubber.

2. Release trim finisher from ’A’ post.
3. Remove securing clips from finisher.

Refit

1. Fit securing clips to finisher.
2. Position finisher to ’A’ post, locate clips and push into position.
3. Fit door sealing rubber.
