Rover 400 Body Repair Manual (1995-2000)05 · Body
05 · Body & interior

Fascia panel (page 2 of 3)

Make
Rover
Model
400 Body Repair Manual
Year
1995–2000
Section
Interior trim components
BodyFascia panel · page 2 of 3
Diagram

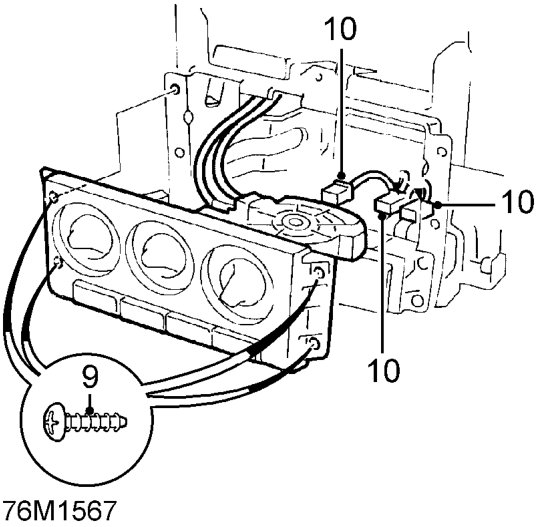

  1. Remove 4 screws securing heater control panel to fascia.
  2. Disconnect 3 multiplugs from heater control switches and remove control panel.
Disconnect 3 multiplugs from heater control switches and remove control panel.

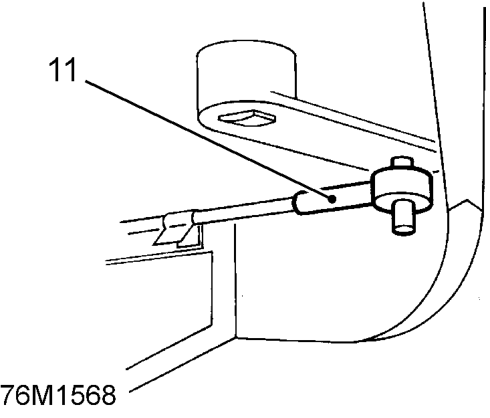

  1. Disconnect fascia centre vent cable from heater.
Disconnect fascia centre vent cable from heater.

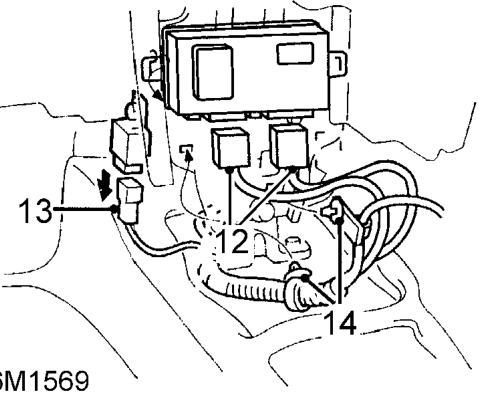

  1. Disconnect 2 multiplugs from alarm ECU.
  2. Disconnect multiplug from starter relay.
  3. Release clips securing harness to fascia support panel.
Release clips securing harness to fascia support panel.

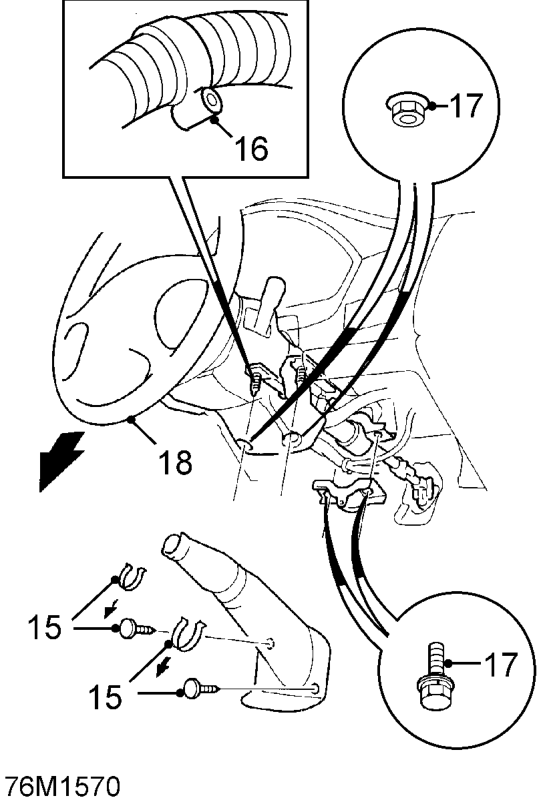

  1. Remove 2 studs and 2 clips securing steering column lower cover.Remove cover.
  2. Release harness clip from steering column stud.
  3. Remove 2 nuts and 2 bolts securing steering column to body.
  4. Lower steering column and collect column clamp.
